142-0701-801

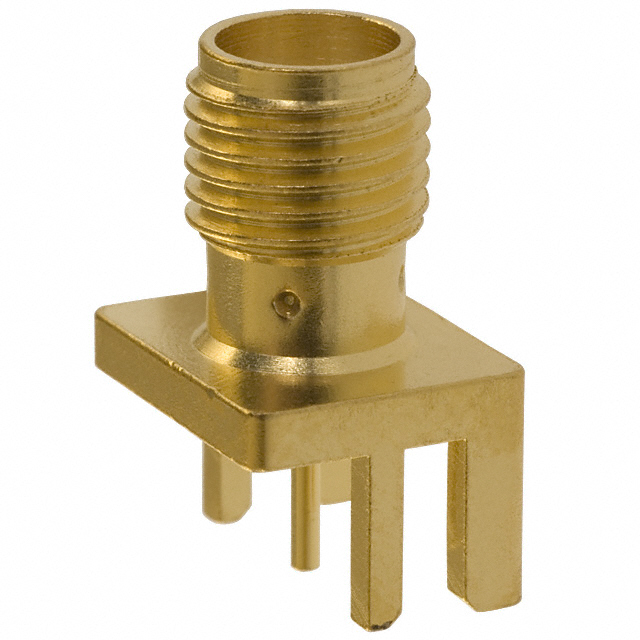

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 142-0701-801 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 142-0701-801 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 142-0701-801 |
|---|---|
| Manufacturer | Bel |
| Description | CONN SMA JACK STR 50OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.366 | $1.31 | $1.201 | $1.146 | $1.092 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.955 | $0.928 | $0.791 | $0.737 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 142-0701-801 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN SMA JACK STR 50OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47776 pcs | Data sheet | 142-0701-801 Drawing142-0701-801 Spec |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 1420701801 J502 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Board Edge, End Launch | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 18GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMA Connector Jack, Female Socket 50 Ohm Board Edge, End Launch Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | SMA | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
