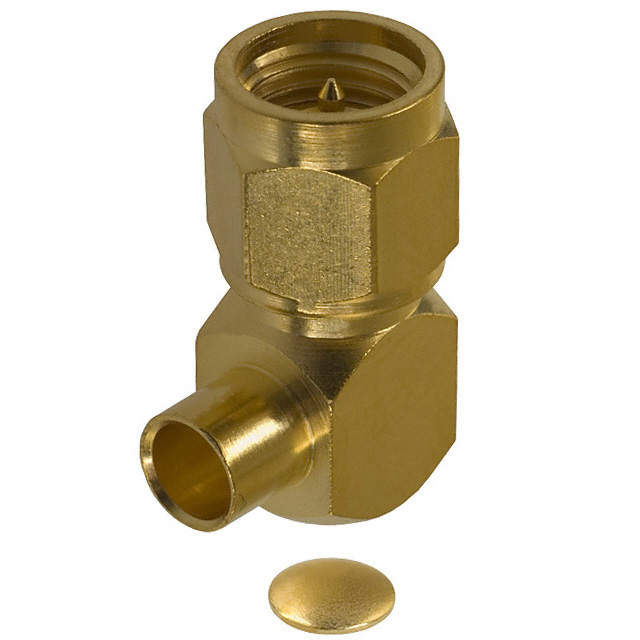

142-0694-101
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 142-0694-101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 142-0694-101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 142-0694-101 |
|---|---|
| Manufacturer | Bel |
| Description | CONN SMA PLUG R/A 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.743 | $5.222 | $5.091 | $4.70 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.439 | $4.047 | $3.786 | $3.473 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 142-0694-101 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN SMA PLUG R/A 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11268 pcs | Data sheet | 142-0694-101/106 Spec142-0694-101 Assem Instr142-0694-101/103/106 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 1420694101 J607 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 2 pcs - 1 Connector, 1 End Cap | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 18GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMA Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | SMA | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-402 (.141" Semi Rigid) |
| Body Material | Brass | Body Finish | Gold |
