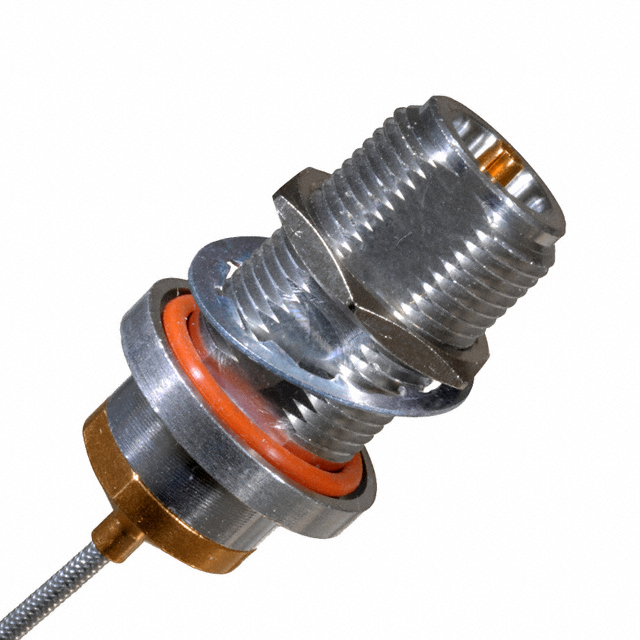

138-4594-401
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 138-4594-401 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 138-4594-401 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 138-4594-401 |
|---|---|
| Manufacturer | Bel |
| Description | CONN N JACK STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $11.586 | $10.459 | $10.021 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $9.394 | $9.081 | $8.58 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 138-4594-401 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN N JACK STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3955 pcs | Data sheet | 138-4594-401 DrawingType N Connector Catalog138-4593-401 Assem Instr |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | J868 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 18GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | N Type Connector Jack, Female Socket 50 Ohm Panel Mount Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | N Type | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | RG-402 (.141" Semi Rigid) |
| Body Material | Brass | Body Finish | Tri-Alloy |
