135-9711-801

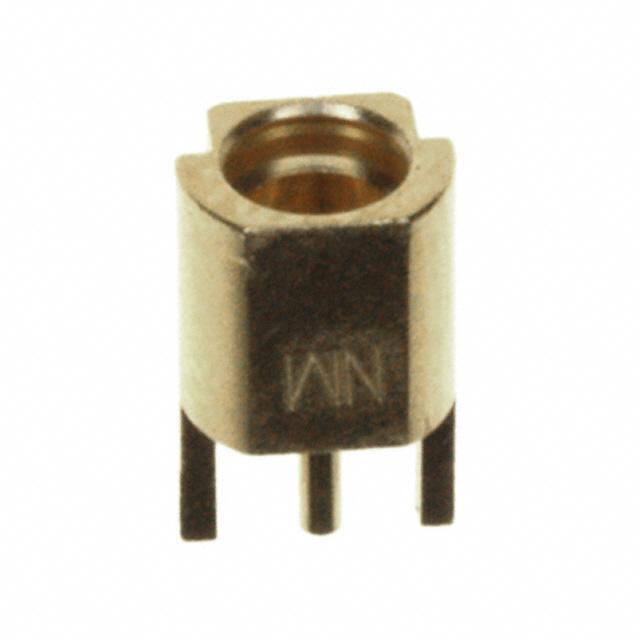

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 135-9711-801 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 135-9711-801 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 135-9711-801 |
|---|---|
| Manufacturer | Bel |
| Description | CONN MMCX JACK STR 50OHM EDGEMNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.368 | $3.223 | $2.93 | $2.783 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.71 | $2.417 | $2.271 | $2.007 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 135-9711-801 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN MMCX JACK STR 50OHM EDGEMNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14999 pcs | Data sheet | 135-9711-80x DrawingNon-Magnetic Connector Brochure |
| Category | Connectors, Interconnects | Voltage Rating | 170V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 1359711801 J10074 |
| Operating Temperature | -55°C ~ 155°C | Number of Ports | 1 |
| Mounting Type | Board Edge, Cutout; Surface Mount | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 6GHz |
| Features | Non-Magnetic | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | MMCX Connector Jack, Female Socket 50 Ohm Board Edge, Cutout; Surface Mount Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | MMCX | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Copper Alloy | Body Finish | Gold |
