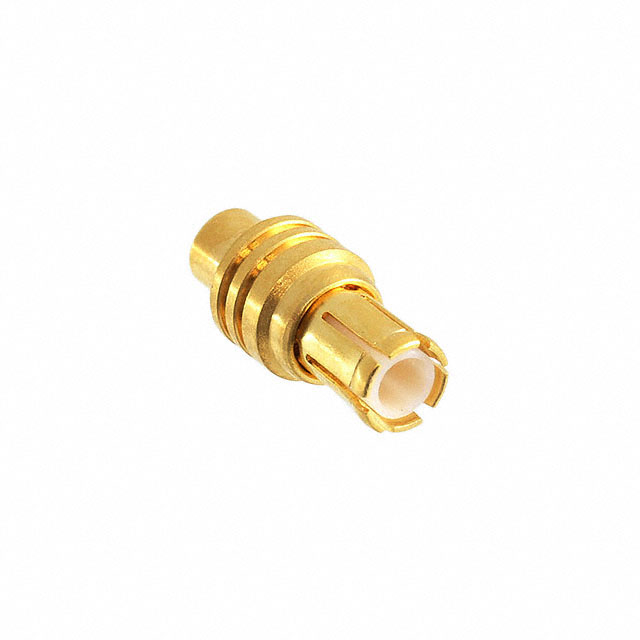

133-3693-001
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 133-3693-001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 133-3693-001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 133-3693-001 |
|---|---|
| Manufacturer | Bel |
| Description | CONN MCX PLUG STR 50OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.515 | $4.105 | $4.002 | $3.695 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.489 | $3.181 | $2.976 | $2.737 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 133-3693-001 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN MCX PLUG STR 50OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11577 pcs | Data sheet | 133-3693-001 Spec133-3693-101 Assem Instr133-3693-00x Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | J10195 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.1dB | Ingress Protection | - |
| Includes | 2 pcs - 1 Connector, 1 Contact | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 6GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | MCX Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | MCX | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-405 (.086 Semi Rigid) |
| Body Material | Brass | Body Finish | Gold |
