131-8403-101
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 131-8403-101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 131-8403-101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 131-8403-101 |
|---|---|
| Manufacturer | Bel |
| Description | CONN MINI SMB PLUG R/A 75 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.365 | $5.911 | $5.305 | $5.153 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.547 | $4.244 | $4.153 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 131-8403-101 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN MINI SMB PLUG R/A 75 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8131 pcs | Data sheet | 131-8403-101/106 Spec131-3303-501 Assem Instr131-8403-101/106 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | 1318403101 J10160 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.6dB | Ingress Protection | - |

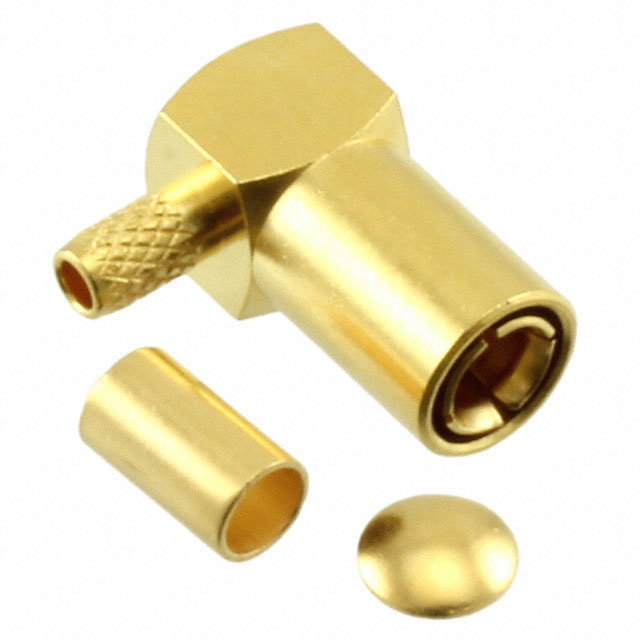

| Includes | 3 pcs - 1 Connector, 1 End Cap, 1 Sleeve | Impedance | 75 Ohm |
| Housing Color | Gold | Frequency - Max | 2GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMB, Mini Connector Plug, Female Socket 75 Ohm Free Hanging (In-Line), Right Angle Solder |
| Contact Termination | Solder | Connector Type | Plug, Female Socket |
| Connector Style | SMB, Mini | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | RG-179, 187 |
| Body Material | Brass | Body Finish | Gold |
