131-3403-001

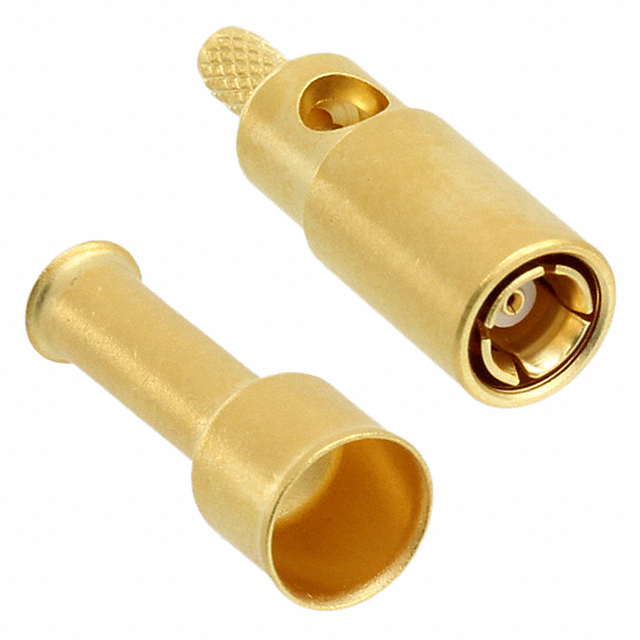

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 131-3403-001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 131-3403-001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 131-3403-001 |
|---|---|
| Manufacturer | Bel |
| Description | CONN SMB PLUG STR 50OHM CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.346 | $4.86 | $4.738 | $4.374 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.131 | $3.766 | $3.523 | $3.232 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 131-3403-001 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN SMB PLUG STR 50OHM CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10081 pcs | Data sheet | 131-3403-001 Spec131-3403-001 Drawing131-1404-016 Assem Instr |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | J10180 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.3dB | Ingress Protection | - |
| Includes | 2 pcs - 1 Connector, 1 Sleeve | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMB Connector Plug, Female Socket 50 Ohm Free Hanging (In-Line) Crimp or Solder |
| Contact Termination | Crimp or Solder | Connector Type | Plug, Female Socket |
| Connector Style | SMB | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | RG-161, 174, 179, 187, 188, 316 |
| Body Material | Brass | Body Finish | Gold |
