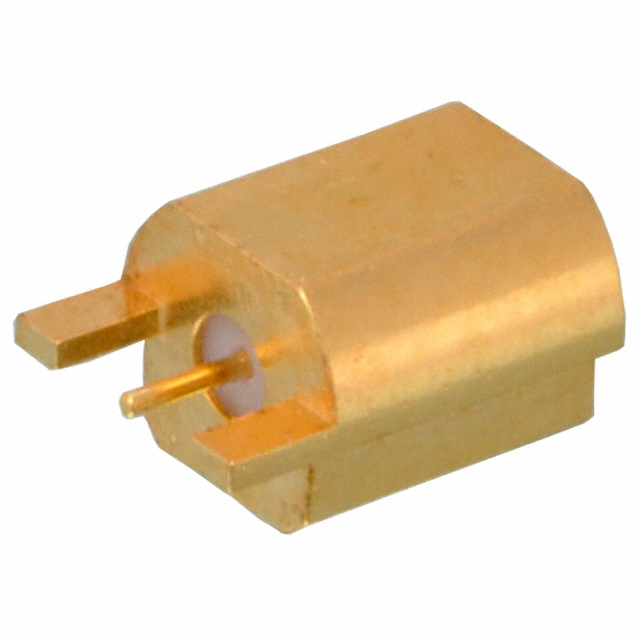

125-2701-801
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 125-2701-801 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 125-2701-801 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 125-2701-801 |
|---|---|
| Manufacturer | Bel |
| Description | CONN SMPM PLUG STR 50OHM EDGEMNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $5.385 | $4.713 | $4.444 | $4.174 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $4.04 | $3.77 | $3.366 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 125-2701-801 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN SMPM PLUG STR 50OHM EDGEMNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10203 pcs | Data sheet | 125-2701-801 DrawingSMPM Brochure |
| Category | Connectors, Interconnects | Voltage Rating | 325V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | J10177 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Board Edge, Cutout; Surface Mount | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 40GHz |
| Features | Smooth Bore | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMPM Connector Plug, Male Pin 50 Ohm Board Edge, Cutout; Surface Mount Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | SMPM | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Beryllium Copper | Body Finish | Gold |
