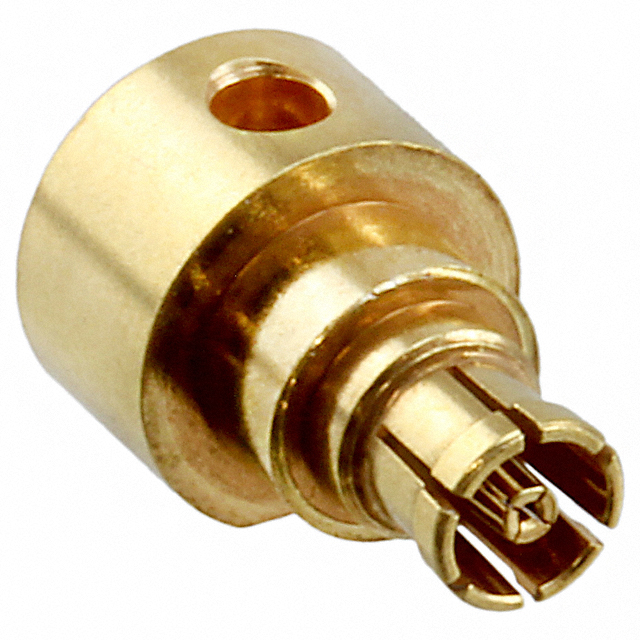

125-0692-101
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 125-0692-101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 125-0692-101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 125-0692-101 |
|---|---|
| Manufacturer | Bel |
| Description | CONN SMPM JACK R/A 50OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $5.476 | $4.79 | $4.517 | $4.243 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $4.106 | $3.832 | $3.422 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 125-0692-101 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN SMPM JACK R/A 50OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10122 pcs | Data sheet | SMPM Brochure125-0692-101 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | J10168 | Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 100 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.12dB |
| Ingress Protection | - | Includes | 2 pcs - 1 Connector, 1 End Cap |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 40GHz | Features | - |
| Fastening Type | Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | SMPM Connector Jack, Female Socket 50 Ohm Free Hanging (In-Line), Right Angle | Contact Termination | - |
| Connector Type | Jack, Female Socket | Connector Style | SMPM |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | 0.047" Semi Rigid | Body Material | Beryllium Copper |
| Body Finish | Gold |
