0685H9250-01

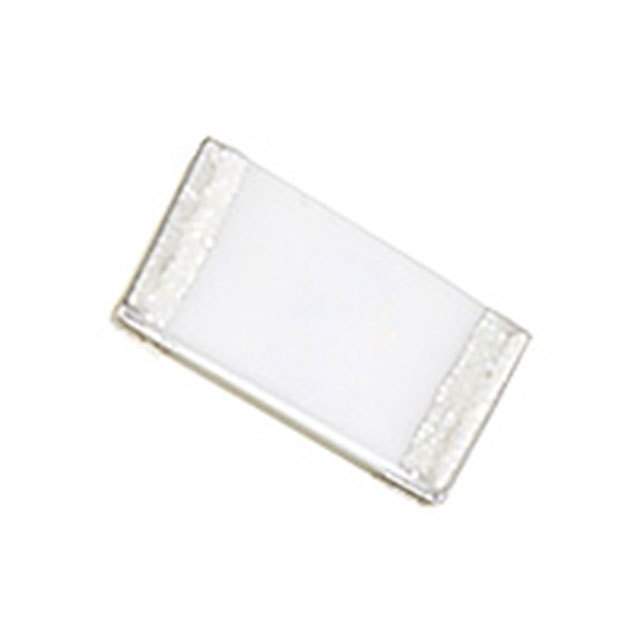

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0685H9250-01 with confidence from Components-World.HK, 1 Year Warranty
Dowload 0685H9250-01 Details in PDFSee Product Specifications for product details.
Buy 0685H9250-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0685H9250-01 |
|---|---|
| Manufacturer | Bel |
| Description | FUSE BOARD MNT 25A 125VAC 32VDC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | 10000 pcs | |||
|---|---|---|---|---|---|
| $0.049 | $0.046 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0685H9250-01 | Manufacturer | Bel |
|---|---|---|---|
| Description | FUSE BOARD MNT 25A 125VAC 32VDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 496636 pcs | Data sheet | C1H Series Datasheet |
| Category | Circuit Protection | Voltage Rating - DC | 32V |
| Voltage Rating - AC | 125V | Size / Dimension | 0.126" L x 0.062" W x 0.026" H (3.20mm x 1.58mm x 0.65mm) |
| Series | C1H | Response Time | Fast |
| Packaging | Tape & Reel (TR) | Package / Case | 1206 (3216 Metric) |
| Other Names | 0685H9250 507-1946-2 C1H 25 C1H25 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Melting I²t | 53.4 | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Fuse Type | Board Mount (Cartridge Style Excluded) |
| DC Cold Resistance | 0.0014 Ohms | Current Rating | 25A |
| Color | - | Breaking Capacity @ Rated Voltage | 150A AC, 300A DC |
| Approvals | cURus |
