HSMF-C153

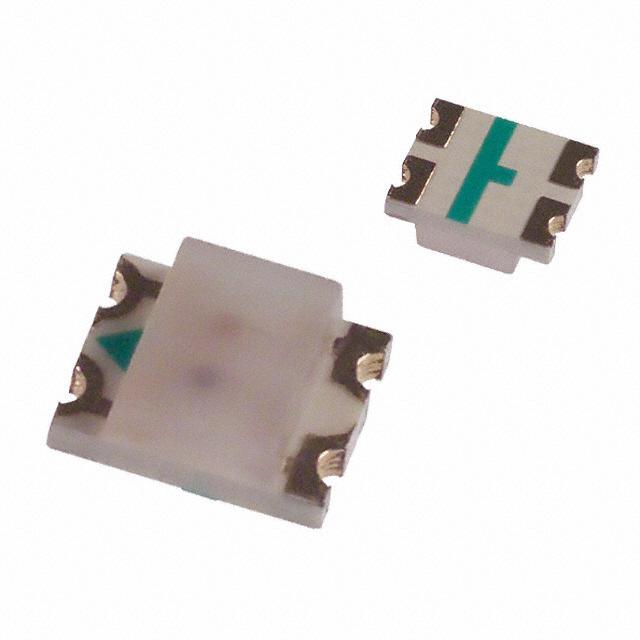

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HSMF-C153 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HSMF-C153 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HSMF-C153 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | LED RED/YELLOW DIFF CHIP SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 21000 pcs | ||||
|---|---|---|---|---|---|
| $0.06 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HSMF-C153 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | LED RED/YELLOW DIFF CHIP SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 385321 pcs | Data sheet | LED Solutions Selection GuideHSMF-C15x |
| Category | Optoelectronics | Wavelength - Peak | 630nm Red, 589nm Yellow |
| Wavelength - Dominant | 626nm Red, 586nm Yellow | Voltage - Forward (Vf) (Typ) | 2.1V Red, 2.1V Yellow |
| Viewing Angle | 170° | Supplier Device Package | Chip LED |
| Size / Dimension | 3.20mm L x 2.70mm W | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 1210 (3225 Metric) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| Millicandela Rating | 10mcd Red, 8mcd Yellow | Manufacturer Standard Lead Time | 9 Weeks |
| Lens Transparency | Diffused | Lens Style/Size | Rectangle with Flat Top, 2.06mm x 2.70mm |
| Lens Color | White | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 1.10mm | Features | - |
| Detailed Description | Red, Yellow 626nm Red, 586nm Yellow LED Indication - Discrete 2.1V Red, 2.1V Yellow 1210 (3225 Metric) | Current - Test | 20mA Red, 20mA Yellow |
| Configuration | Independent | Color | Red, Yellow |
| Base Part Number | HSMF-C15 |
