HLMP-6300-F001S

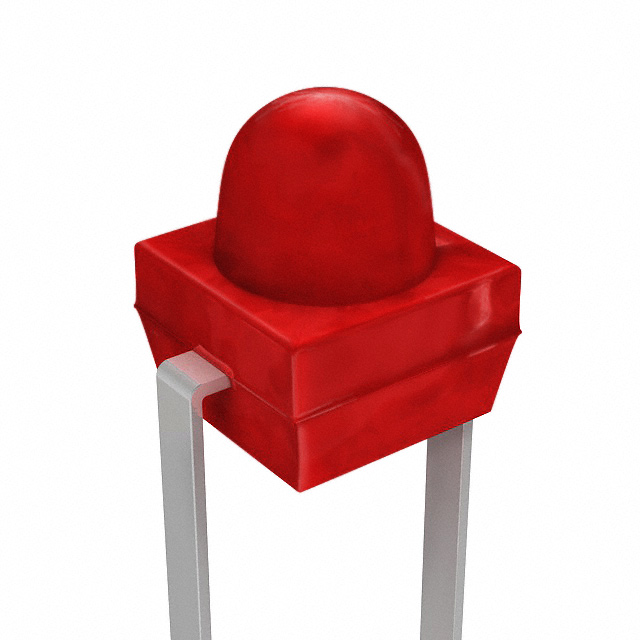

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HLMP-6300-F001S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HLMP-6300-F001S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HLMP-6300-F001S |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | LED RED DIFFUSED AXIAL T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.323 | $0.252 | $0.209 | $0.18 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.158 | $0.137 | $0.108 | $0.101 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HLMP-6300-F001S | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | LED RED DIFFUSED AXIAL T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 238633 pcs | Data sheet | Option 11,12,21,22,31,32,1L,1S,2L,2SHLMP-Pzzz,Qzzz,6zzz,70zzLED Solutions Selection Guide |
| Category | Optoelectronics | Wavelength - Peak | 635nm |
| Wavelength - Dominant | 626nm | Voltage - Forward (Vf) (Typ) | 1.8V |
| Viewing Angle | 90° | Supplier Device Package | Axial |
| Size / Dimension | 2.08mm L x 2.21mm W | Series | - |
| Packaging | Bulk | Package / Case | Axial, Right Angle Bend (2.54mm Center) |
| Other Names | 516-3130 HLMP-6300-F001S-ND |
Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) | Millicandela Rating | 10mcd |
| Manufacturer Standard Lead Time | 9 Weeks | Lens Transparency | Diffused |
| Lens Style/Size | Round with Domed Top, 1.78mm | Lens Color | Red |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 2.92mm |
| Features | - | Detailed Description | Red 626nm LED Indication - Discrete 1.8V Axial, Right Angle Bend (2.54mm Center) |
| Current - Test | 10mA | Configuration | Standard |
| Color | Red | Base Part Number | HLMP-6300 |
