HEDL-5540#A02

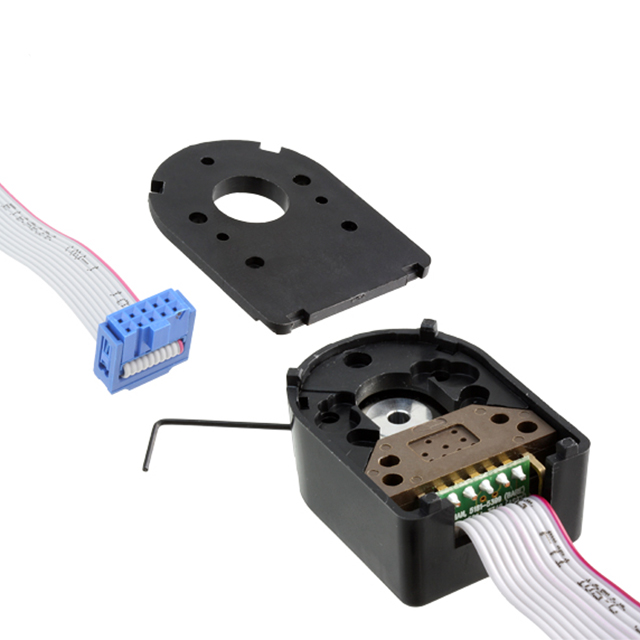

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HEDL-5540#A02 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HEDL-5540#A02 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HEDL-5540#A02 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | ROTARY ENCODER OPTICAL 500PPR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $25.661 | $22.644 | $16.605 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HEDL-5540#A02 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | ROTARY ENCODER OPTICAL 500PPR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2074 pcs | Data sheet | HEDL-5zzz, 9zzz Series |
| Category | Sensors, Transducers | Voltage - Supply | 5V |
| Termination Style | Cable with Connector | Series | HEDL |
| Rotational Life (Cycles Min) | - | Pulses per Revolution | 500 |
| Output Type | Quadrature with Index (Incremental) | Other Names | 516-3018 HEDL-5540#A02-ND |
| Orientation | Vertical | Mounting Type | Chassis Mount, Motors |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Encoder Type | Optical |
| Detent | No | Built in Switch | No |
| Actuator Type | 3mm Open Center |
