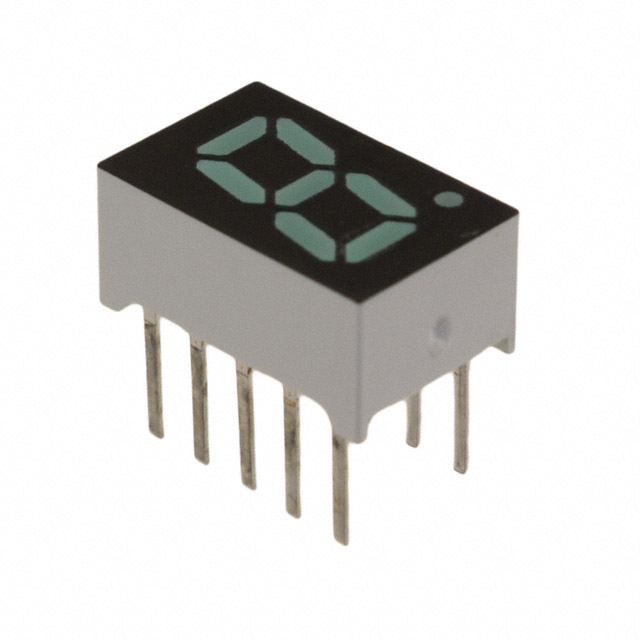

HDSP-U513
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDSP-U513 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDSP-U513 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDSP-U513 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | DISPLAY 7SEGMENT GREEN CC 0.31" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 200 pcs | |
|---|---|---|---|---|---|
| $1.155 | $0.963 | $0.809 | $0.694 | ||
| 400 pcs | 600 pcs | 1000 pcs | 2600 pcs | ||
| $0.617 | $0.559 | $0.513 | $0.491 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDSP-U513 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | DISPLAY 7SEGMENT GREEN CC 0.31" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64164 pcs | Data sheet | HDSP-U1,2,3,4,5xx Series |
| Category | Optoelectronics | Wavelength - Peak | 566nm |
| Voltage - Forward (Vf) (Typ) | 2.1V | Size / Dimension | 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm) |
| Series | - | Power Dissipation (Max) | 105mW |
| Packaging | Tube | Package / Case | 10-DIP (0.209", 5.30mm) |
| Other Names | 516-2398 HDSP-U513-ND HDSPU513 |
Number of Characters | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Millicandela Rating | 6.8mcd |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 0.31" (8.00mm) |
| Detailed Description | Character LED Display Module Green 7-Segment 1 Character Common Cathode 2.1V 10mA 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm) 10-DIP (0.209", 5.30mm) | Current - Test | 10mA |
| Common Pin | Common Cathode | Color | Green |
