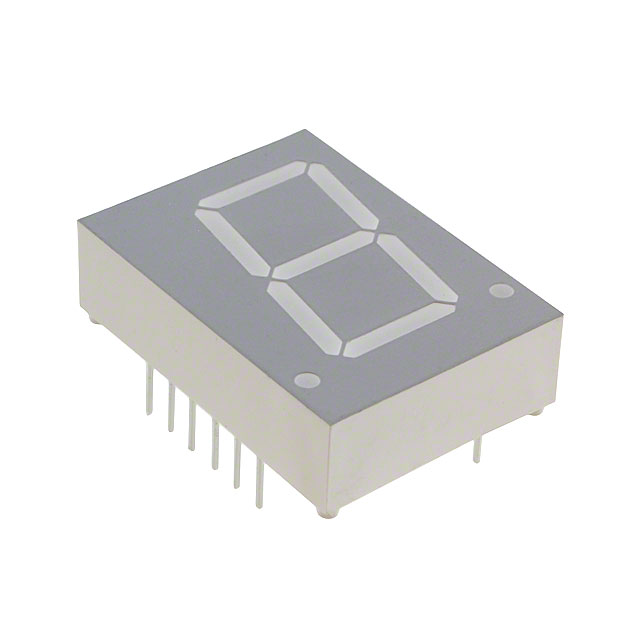

HDSP-N103
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDSP-N103 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDSP-N103 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDSP-N103 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | DISPLAY 7SEG ALGAAS CC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1320 pcs | ||||
|---|---|---|---|---|---|
| $1.001 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDSP-N103 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | DISPLAY 7SEG ALGAAS CC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32552 pcs | Data sheet | HDSP-335x,555x,751x,x10x,Ax0x,K12x,K70x |
| Category | Optoelectronics | Wavelength - Peak | 645nm |
| Voltage - Forward (Vf) (Typ) | 1.7V | Size / Dimension | 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) |
| Series | - | Power Dissipation (Max) | 37mW |
| Packaging | Bulk | Package / Case | 18-DIP (0.600", 15.24mm), 12 Leads |
| Other Names | 516-2550 HDSP-N103-ND HDSPN103 |
Number of Characters | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Millicandela Rating | 3.5mcd |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 0.80" (20.32mm) |
| Detailed Description | Character LED Display Module Red 7-Segment 1 Character Common Cathode 1.7V 5mA 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) 18-DIP (0.600", 15.24mm), 12 Leads | Current - Test | 5mA |
| Common Pin | Common Cathode | Color | Red |
