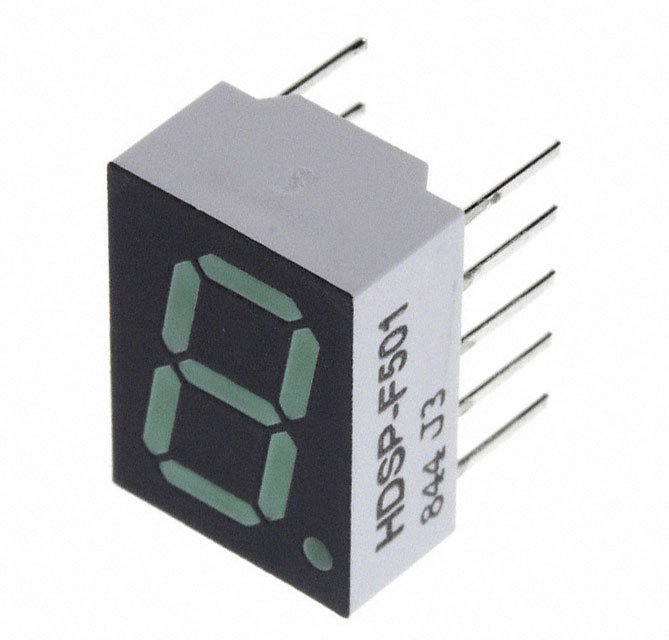

HDSP-F501
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDSP-F501 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDSP-F501 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDSP-F501 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | LED 7-SEG 10MM CA GREEN RHD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.178 | $0.982 | $0.825 | $0.707 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.629 | $0.57 | $0.523 | $0.501 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDSP-F501 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | LED 7-SEG 10MM CA GREEN RHD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78469 pcs | Data sheet | HDSP-Fzzz,Gzzz |
| Category | Optoelectronics | Wavelength - Peak | 566nm |
| Voltage - Forward (Vf) (Typ) | 2.1V | Size / Dimension | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) |
| Series | - | Power Dissipation (Max) | 105mW |
| Packaging | Bulk | Package / Case | 10-DIP (0.300", 7.62mm) |
| Other Names | 516-1200 516-1200-5 516-1200-5-ND HDSPF501 |
Number of Characters | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Millicandela Rating | 3.5mcd |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 0.40" (10.16mm) |
| Detailed Description | Character LED Display Module Green 7-Segment 1 Character Common Anode 2.1V 10mA 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) 10-DIP (0.300", 7.62mm) | Current - Test | 10mA |
| Common Pin | Common Anode | Color | Green |
