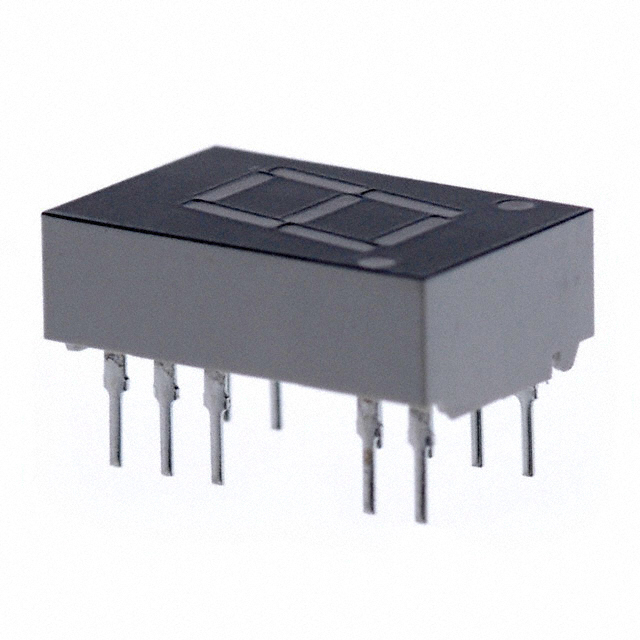

HDSP-E101
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDSP-E101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDSP-E101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDSP-E101 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | LED 7-SEG 10.9MM CA RED RHD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 200 pcs | |
|---|---|---|---|---|---|
| $1.611 | $1.344 | $1.129 | $0.967 | ||
| 400 pcs | 600 pcs | 1000 pcs | 2600 pcs | ||
| $0.86 | $0.779 | $0.715 | $0.685 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDSP-E101 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | LED 7-SEG 10.9MM CA RED RHD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56318 pcs | Data sheet | HDSP-335x,555x,751x,x10x,Ax0x,K12x,K70x |
| Category | Optoelectronics | Wavelength - Peak | 645nm |
| Voltage - Forward (Vf) (Typ) | 1.7V | Size / Dimension | 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) |
| Series | - | Power Dissipation (Max) | 37mW |
| Packaging | Tube | Package / Case | 14-DIP (0.300", 7.62mm), 10 Leads |
| Other Names | 516-1226-5 HDSPE101 |
Number of Characters | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Millicandela Rating | 3.9mcd |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 0.43" (11.00mm) |
| Detailed Description | Character LED Display Module Red 7-Segment 1 Character Common Anode 1.7V 5mA 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) 14-DIP (0.300", 7.62mm), 10 Leads | Current - Test | 5mA |
| Common Pin | Common Anode | Color | Red |
