HDSP-8603

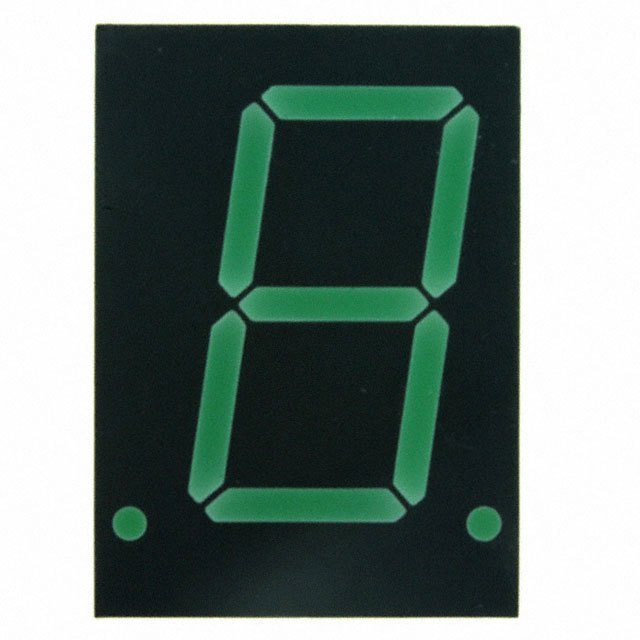

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDSP-8603 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDSP-8603 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDSP-8603 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | LED 7-SEG 20MM CC GREEN RHD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1680 pcs | ||||
|---|---|---|---|---|---|
| $0.766 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDSP-8603 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | LED 7-SEG 20MM CC GREEN RHD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49453 pcs | Data sheet | HDSP-390x,420x,860x,N15x |
| Category | Optoelectronics | Wavelength - Peak | 566nm |
| Voltage - Forward (Vf) (Typ) | 2.1V | Size / Dimension | 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) |
| Series | - | Power Dissipation (Max) | 105mW |
| Packaging | Tube | Package / Case | 18-DIP (0.600", 15.24mm), 12 Leads |
| Other Names | 516-1235-5 HDSP8603 |
Number of Characters | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Millicandela Rating | 1.5mcd |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 0.80" (20.32mm) |
| Detailed Description | Character LED Display Module Green 7-Segment 1 Character Common Cathode 2.1V 10mA 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) 18-DIP (0.600", 15.24mm), 12 Leads | Current - Test | 10mA |
| Common Pin | Common Cathode | Color | Green |
