HDSP-7801-JK000

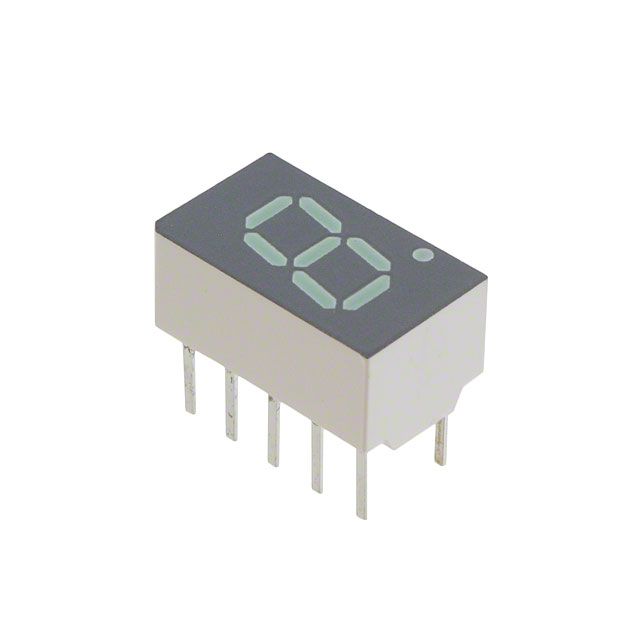

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDSP-7801-JK000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDSP-7801-JK000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDSP-7801-JK000 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | DISPLAY 7SEGMENT GREEN CA 0.3" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2200 pcs | ||||
|---|---|---|---|---|---|
| $0.56 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDSP-7801-JK000 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | DISPLAY 7SEGMENT GREEN CA 0.3" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69009 pcs | Data sheet | HDSP-7x0x,A15x,A40x |
| Category | Optoelectronics | Wavelength - Peak | 566nm |
| Voltage - Forward (Vf) (Typ) | 2.1V | Size / Dimension | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) |
| Series | - | Power Dissipation (Max) | 105mW |
| Packaging | Bulk | Package / Case | 10-DIP (0.200", 5.08mm) |
| Other Names | 516-2741 HDSP-7801-JK000-ND HDSP7801JK000 |
Number of Characters | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Millicandela Rating | 6.8mcd |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 0.30" (7.62mm) |
| Detailed Description | Character LED Display Module Green 7-Segment 1 Character Common Anode 2.1V 10mA 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) 10-DIP (0.200", 5.08mm) | Current - Test | 10mA |
| Common Pin | Common Anode | Color | Green |
