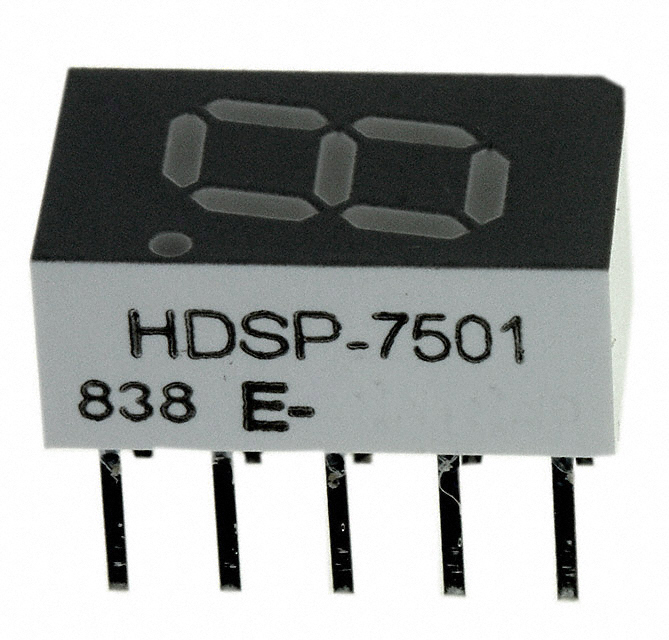

HDSP-7501
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDSP-7501 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDSP-7501 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDSP-7501 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | LED 7-SEG 7.6MM CA HE RED RHD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2400 pcs | ||||
|---|---|---|---|---|---|
| $0.505 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDSP-7501 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | LED 7-SEG 7.6MM CA HE RED RHD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73915 pcs | Data sheet | HDSP-7x0x,A15x,A40x |
| Category | Optoelectronics | Wavelength - Peak | 635nm |
| Voltage - Forward (Vf) (Typ) | 2V | Size / Dimension | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) |
| Series | - | Power Dissipation (Max) | 105mW |
| Packaging | Tube | Package / Case | 10-DIP (0.200", 5.08mm) |
| Other Names | 516-1202-5 HDSP7501 |
Number of Characters | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Millicandela Rating | 5.39mcd |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 0.30" (7.62mm) |
| Detailed Description | Character LED Display Module Red 7-Segment 1 Character Common Anode 2V 20mA 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) 10-DIP (0.200", 5.08mm) | Current - Test | 20mA |
| Common Pin | Common Anode | Color | Red |
