HCPL-5631#300

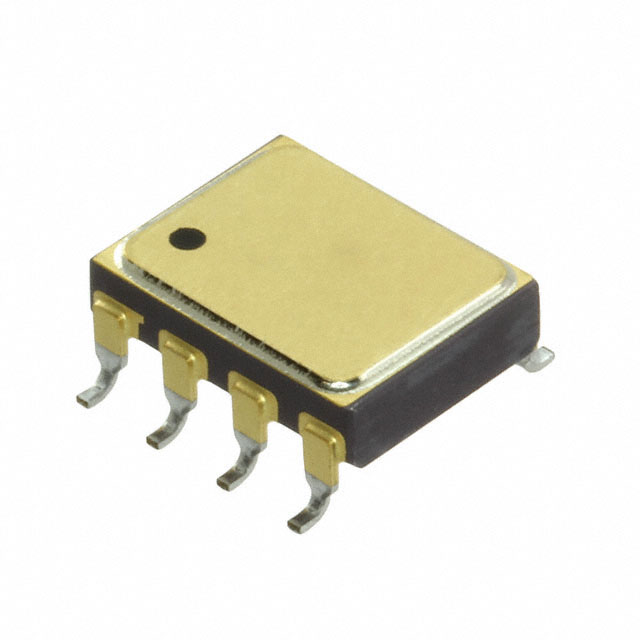

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HCPL-5631#300 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HCPL-5631#300 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HCPL-5631#300 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | OPTOISO 1.5KV OPEN COLL 8DIP GW |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 45 pcs | ||||
|---|---|---|---|---|---|
| $28.136 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HCPL-5631#300 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISO 1.5KV OPEN COLL 8DIP GW | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1336 pcs | Data sheet | 6N134,81028,5962-9(8001,0855),HCPL-(56x,66x,268) |
| Category | Isolators | Voltage - Supply | 4.5 V ~ 5.5 V |
| Voltage - Isolation | 1500VDC | Voltage - Forward (Vf) (Typ) | 1.5V |
| Supplier Device Package | 8-DIP Gull Wing | Series | - |
| Rise / Fall Time (Typ) | 35ns, 35ns | Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Packaging | Tube | Package / Case | 8-CSMD, Gull Wing |
| Output Type | Open Collector, Schottky Clamped | Operating Temperature | -55°C ~ 125°C |
| Number of Channels | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Inputs - Side 1/Side 2 | 2/0 |
| Input Type | DC | Detailed Description | Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 1500VDC 2 Channel 1kV/µs CMTI 8-DIP Gull Wing |
| Data Rate | 10MBd | Current - Output / Channel | 25mA |
| Current - DC Forward (If) (Max) | 20mA | Common Mode Transient Immunity (Min) | 1kV/µs |
