Home > Products > Isolators > Isolators - Gate Drivers > HCPL-315J-000E

HCPL-315J-000E

HCPL-315J-000E

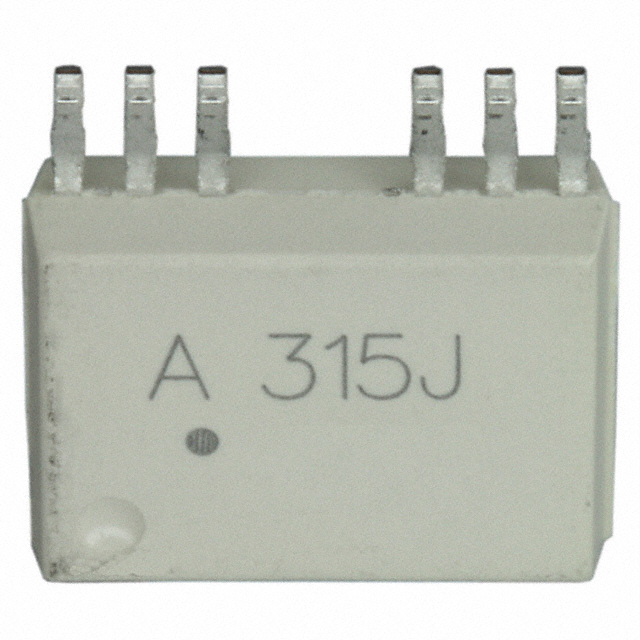

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HCPL-315J-000E with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number HCPL-315J-000E
Manufacturer Avago Technologies (Broadcom Limited)
Description OPTOISO 5KV 2CH GATE DRIVER 16SO
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 37851 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs45 pcs135 pcs
$2.411$2.008$1.687$1.446
270 pcs540 pcs1035 pcs2520 pcs
$1.285$1.165$1.068$1.024

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$2.411

Product parameter

Part Number HCPL-315J-000E Manufacturer Avago Technologies (Broadcom Limited)
Description OPTOISO 5KV 2CH GATE DRIVER 16SO Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 37851 pcs Data sheet HCPL-3150, HCPL-315J
Category Isolators Voltage - Supply 15 V ~ 30 V
Voltage - Isolation 5000Vrms Voltage - Forward (Vf) (Typ) 1.6V
Technology Optical Coupling Supplier Device Package 16-SO
Series - Rise / Fall Time (Typ) 100ns, 100ns
Pulse Width Distortion (Max) 300ns Propagation Delay tpLH / tpHL (Max) 500ns, 500ns
Packaging Tube Package / Case 16-SOIC (0.295", 7.50mm Width), 12 Leads
Other Names 516-1673-5
HCPL315J000E		 Operating Temperature -40°C ~ 100°C
Number of Channels 2 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 12 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Detailed Description 600mA Gate Driver Optical Coupling 5000Vrms 2 Channel 16-SO
Current - Peak Output 600mA Current - Output High, Low 500mA, 500mA
Current - DC Forward (If) (Max) 25mA Common Mode Transient Immunity (Min) 15kV/µs
Approvals CSA, IEC/EN/DIN, UR
