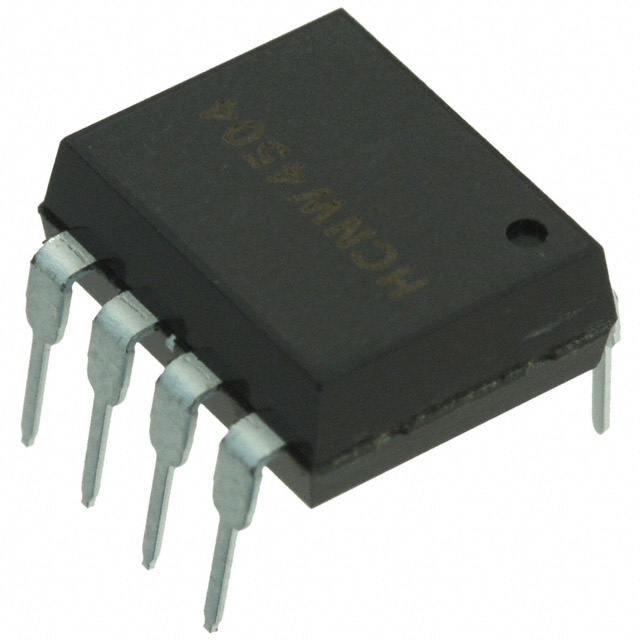

| Part Number | HCNW4504-000E |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | OPTOISOLATOR 5KV TRANSISTOR 8DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 42 pcs | 126 pcs | |
|---|---|---|---|---|---|
| $1.103 | $0.919 | $0.772 | $0.662 | ||
| 252 pcs | 504 pcs | 1008 pcs | 2520 pcs | ||
| $0.588 | $0.533 | $0.489 | $0.469 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HCNW4504-000E | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISOLATOR 5KV TRANSISTOR 8DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75742 pcs | Data sheet | HCPL-4504/J454/0454, HCNW4504 |
| Category | Isolators | Voltage - Output (Max) | 20V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.59V |
| Vce Saturation (Max) | - | Turn On / Turn Off Time (Typ) | 200ns, 300ns |
| Supplier Device Package | 8-DIP | Series | - |
| Rise / Fall Time (Typ) | - | Packaging | Tube |
| Package / Case | 8-DIP (0.400", 10.16mm) | Output Type | Transistor |
| Other Names | 516-2382-5 HCNW4504-000E-ND HCNW4504000E |
Operating Temperature | -55°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 5000Vrms 1 Channel 8-DIP | Current Transfer Ratio (Min) | 19% @ 16mA |
| Current Transfer Ratio (Max) | 63% @ 16mA | Current - Output / Channel | 8mA |
| Current - DC Forward (If) (Max) | 25mA |
