CNY17-2-000E

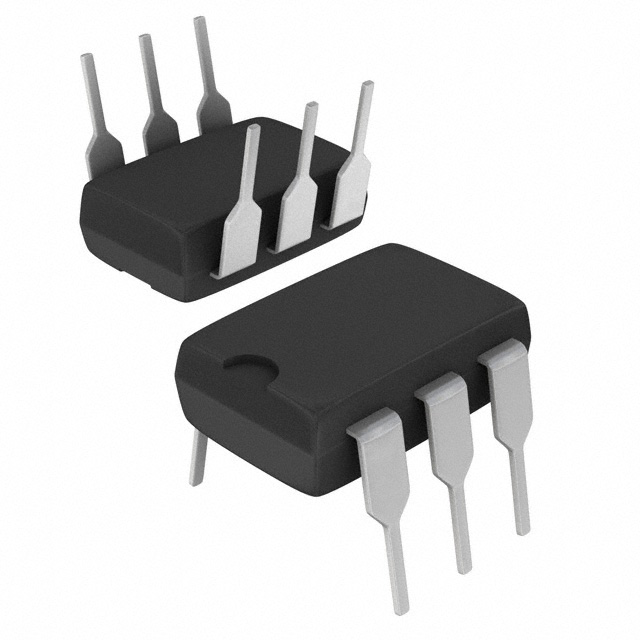

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CNY17-2-000E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CNY17-2-000E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CNY17-2-000E |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | OPTOISO 5KV TRANS W/BASE 6DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 130 pcs | |
|---|---|---|---|---|---|
| $0.222 | $0.159 | $0.13 | $0.104 | ||
| 260 pcs | 520 pcs | 1040 pcs | 2535 pcs | ||
| $0.088 | $0.075 | $0.059 | $0.054 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CNY17-2-000E | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISO 5KV TRANS W/BASE 6DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 350386 pcs | Data sheet | CNY17-x Series |
| Category | Isolators | Voltage - Output (Max) | 70V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.4V |
| Vce Saturation (Max) | 300mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 6-DIP | Series | - |
| Rise / Fall Time (Typ) | 5µs, 5µs | Packaging | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm) | Output Type | Transistor with Base |
| Other Names | 516-1575-5 CNY172000E |
Operating Temperature | -55°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-DIP | Current Transfer Ratio (Min) | 63% @ 10mA |
| Current Transfer Ratio (Max) | 125% @ 10mA | Current - Output / Channel | 150mA |
| Current - DC Forward (If) (Max) | 60mA |
