AT-42086-TR1G

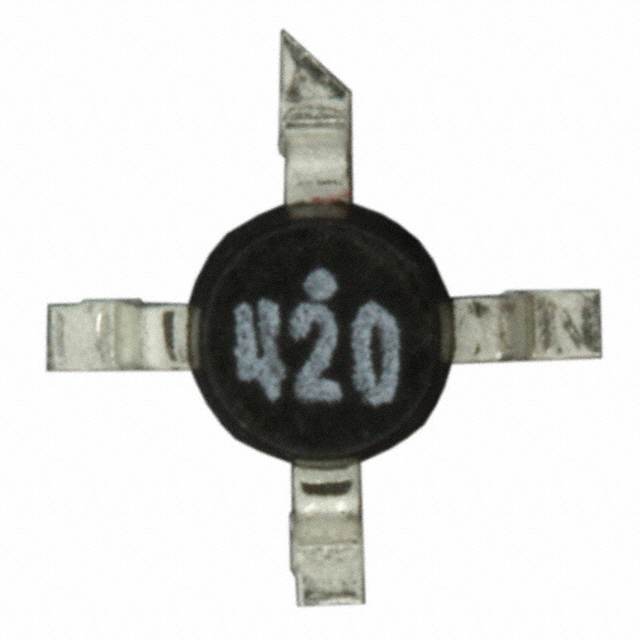

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AT-42086-TR1G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AT-42086-TR1G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AT-42086-TR1G |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | TRANS NPN BIPO 12V 80MA 86-SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AT-42086-TR1G | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | TRANS NPN BIPO 12V 80MA 86-SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5151 pcs | Data sheet | AT-42086 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 12V |
| Transistor Type | NPN | Supplier Device Package | 86 Plastic |
| Series | - | Power - Max | 500mW |
| Packaging | Cut Tape (CT) | Package / Case | SOT-86 |
| Other Names | 516-1783-1 AT42086TR1G |
Operating Temperature | 150°C (TJ) |
| Noise Figure (dB Typ @ f) | 1.9dB ~ 3.5dB @ 2GHz ~ 4GHz | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gain | 9dB ~ 13dB | Frequency - Transition | 8GHz |
| Detailed Description | RF Transistor NPN 12V 80mA 8GHz 500mW Surface Mount 86 Plastic | DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 35mA, 8V |
| Current - Collector (Ic) (Max) | 80mA | Base Part Number | AT42086 |
