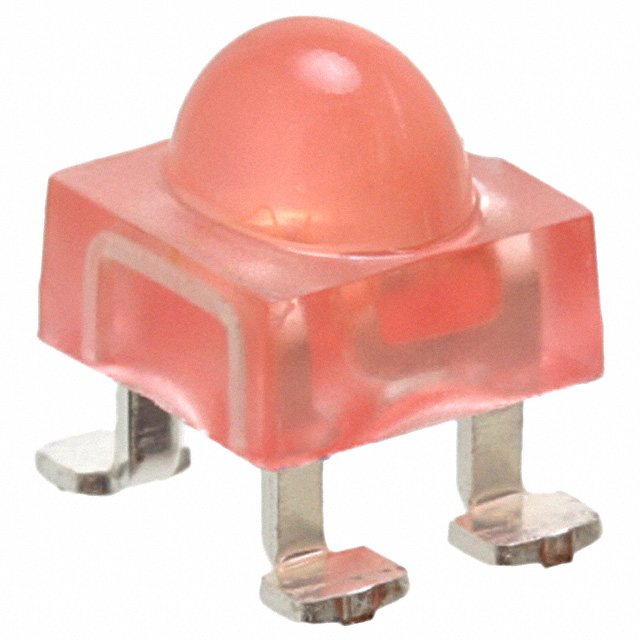

ALMD-LG36-WZ002
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ALMD-LG36-WZ002 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ALMD-LG36-WZ002 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ALMD-LG36-WZ002 |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | LED RED DIFFUSED SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 12000 pcs | ||||
|---|---|---|---|---|---|
| $0.107 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ALMD-LG36-WZ002 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | LED RED DIFFUSED SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 176936 pcs | Data sheet | ALMD-Lx36LED Solutions Selection Guide |
| Category | Optoelectronics | Wavelength - Peak | 634nm |
| Wavelength - Dominant | 626nm | Voltage - Forward (Vf) (Typ) | 2.1V |
| Viewing Angle | 100°, 40° | Supplier Device Package | SMD |
| Size / Dimension | 4.20mm L x 4.20mm W | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 4-SMD, Gull Wing |
| Other Names | 516-2582-2 ALMD-LG36-WZ002-ND ALMDLG36WZ002 |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) | Millicandela Rating | 2140mcd |
| Manufacturer Standard Lead Time | 12 Weeks | Lens Transparency | Diffused |
| Lens Style/Size | Oval with Domed Top | Lens Color | Red |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 5.70mm |
| Features | - | Detailed Description | Red 626nm LED Indication - Discrete 2.1V 4-SMD, Gull Wing |
| Current - Test | 20mA | Configuration | Standard |
| Color | Red | Base Part Number | ALMD-LG36 |
