ACPL-P481-560E

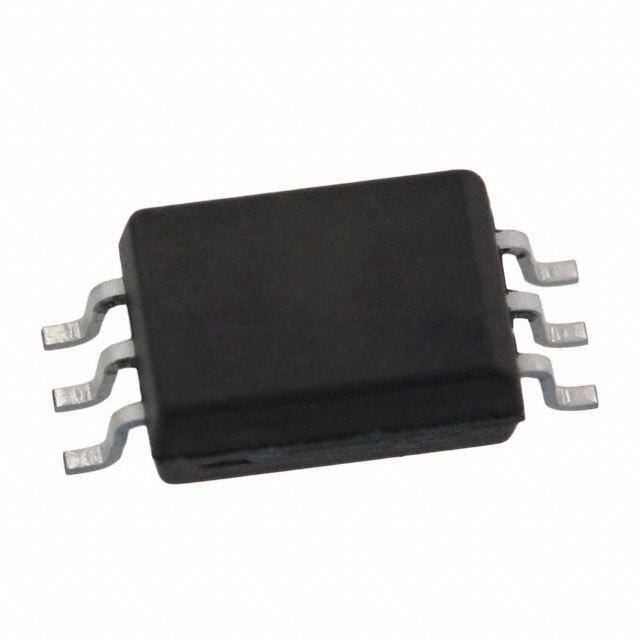

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACPL-P481-560E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACPL-P481-560E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACPL-P481-560E |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | OPTOISO 3.75KV PUSH PULL 6SO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.488 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACPL-P481-560E | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISO 3.75KV PUSH PULL 6SO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65832 pcs | Data sheet | ACPL-P481,W481 |
| Category | Isolators | Voltage - Supply | 4.5 V ~ 20 V |
| Voltage - Isolation | 3750Vrms | Voltage - Forward (Vf) (Typ) | 1.5V |
| Supplier Device Package | 6-SO Stretched | Series | - |
| Rise / Fall Time (Typ) | 16ns, 20ns | Propagation Delay tpLH / tpHL (Max) | 350ns, 350ns |
| Packaging | Tape & Reel (TR) | Package / Case | 6-SOIC (0.295", 7.50mm Width) |
| Output Type | Push-Pull, Totem Pole | Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 22 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC | Detailed Description | Logic Output Optoisolator Push-Pull, Totem Pole 3750Vrms 1 Channel 20kV/µs CMTI 6-SO Stretched |
| Data Rate | - | Current - Output / Channel | 25mA |
| Current - DC Forward (If) (Max) | 10mA | Common Mode Transient Immunity (Min) | 20kV/µs |
