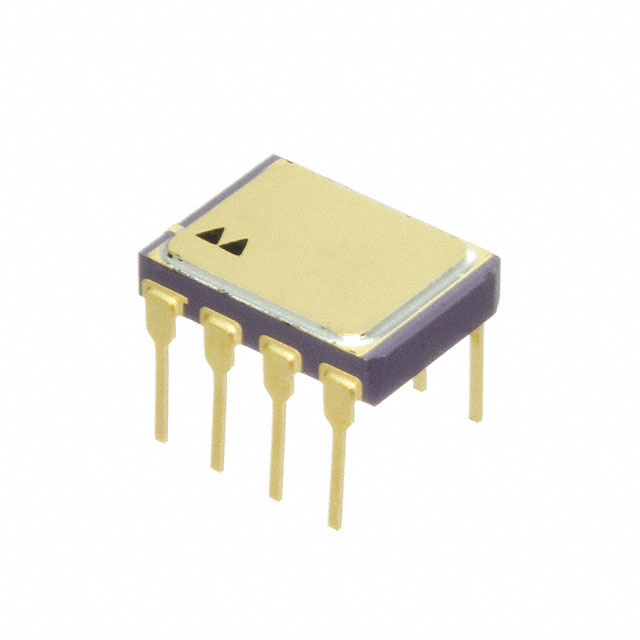

ACPL-5700L
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACPL-5700L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACPL-5700L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACPL-5700L |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | OPTOISO 1.5KV DARLINGTON 8-DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $30.144 | $27.237 | $25.422 | $24.15 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACPL-5700L | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISO 1.5KV DARLINGTON 8-DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1311 pcs | Data sheet | ACPL-570xL,573xL,177xL,5962-08227 |
| Category | Isolators | Voltage - Output (Max) | 20V |
| Voltage - Isolation | 1500VDC | Voltage - Forward (Vf) (Typ) | 1.4V |
| Vce Saturation (Max) | - | Turn On / Turn Off Time (Typ) | 2µs, 6µs |
| Supplier Device Package | 8-DIP | Series | - |
| Rise / Fall Time (Typ) | - | Packaging | Tube |
| Package / Case | 8-CDIP (0.300", 7.62mm) | Output Type | Darlington |
| Other Names | 516-3931 ACPL-5700L-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Darlington Output 1500VDC 1 Channel 8-DIP | Current Transfer Ratio (Min) | 200% @ 5mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | 40mA |
| Current - DC Forward (If) (Max) | 10mA |
