Home > Products > Isolators > Optoisolators - Logic Output > ACNV2601-300E

ACNV2601-300E

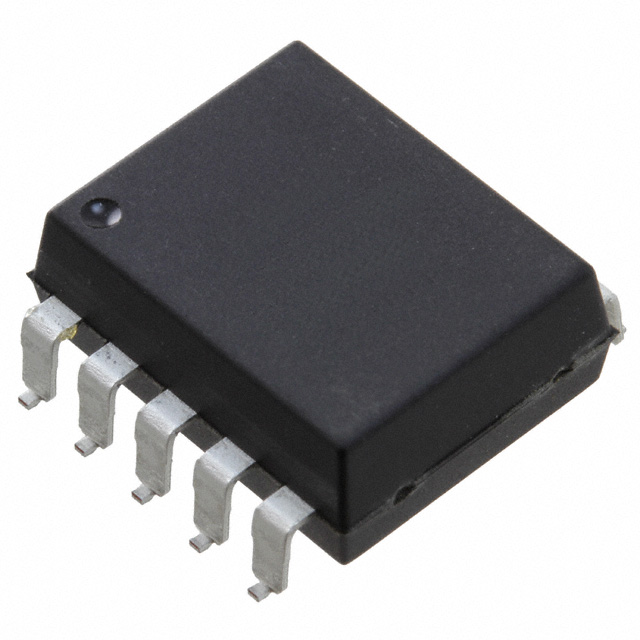

ACNV2601-300E
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACNV2601-300E with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number ACNV2601-300E
Manufacturer Avago Technologies (Broadcom Limited)
Description OPTOISO 7.5KV OPEN COLL 10DIP GW
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 47324 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs25 pcs175 pcs
$1.909$1.592$1.337$1.146
350 pcs525 pcs1050 pcs2625 pcs
$1.019$0.923$0.847$0.812

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$1.909

Product parameter

Part Number ACNV2601-300E Manufacturer Avago Technologies (Broadcom Limited)
Description OPTOISO 7.5KV OPEN COLL 10DIP GW Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 47324 pcs Data sheet ACNV2601
Category Isolators Voltage - Supply 4.5 V ~ 5.5 V
Voltage - Isolation 7500Vrms Voltage - Forward (Vf) (Typ) 1.64V
Supplier Device Package 10-DIP Gull Wing Series -
Rise / Fall Time (Typ) 25ns, 10ns Propagation Delay tpLH / tpHL (Max) 80ns, 80ns
Packaging Tube Package / Case 10-SMD, Gull Wing
Output Type Open Collector, Schottky Clamped Other Names 516-2888
ACNV2601-300E-ND
Operating Temperature -40°C ~ 105°C Number of Channels 1
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 3 (168 Hours)
Manufacturer Standard Lead Time 8 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Inputs - Side 1/Side 2 1/0 Input Type DC
Detailed Description Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 7500Vrms 1 Channel 20kV/µs CMTI 10-DIP Gull Wing Data Rate 10MBd
Current - Output / Channel 50mA Current - DC Forward (If) (Max) 20mA
Common Mode Transient Immunity (Min) 20kV/µs
