ACFL-6211U-500E

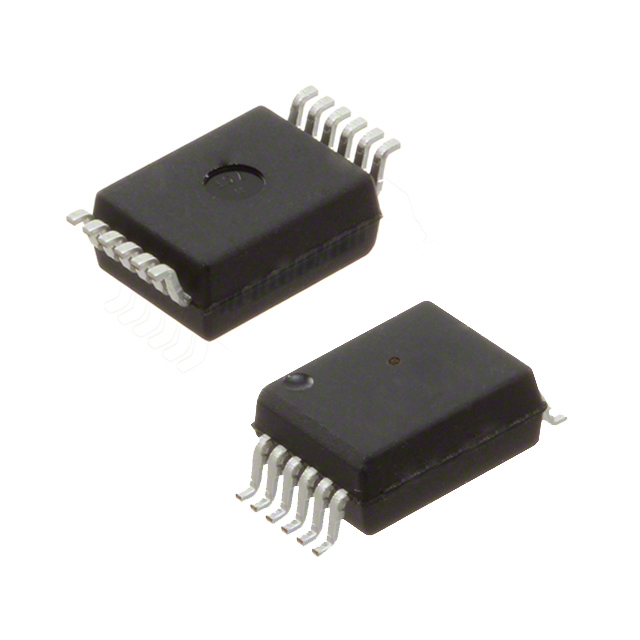

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACFL-6211U-500E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACFL-6211U-500E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACFL-6211U-500E |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | OPTOISO 5KV 2CH PSH PULL SO12 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.87 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACFL-6211U-500E | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISO 5KV 2CH PSH PULL SO12 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38615 pcs | Data sheet | ACFL-6211U, ACFL-6212U |
| Category | Isolators | Voltage - Supply | 3 V ~ 5.5 V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.5V |
| Supplier Device Package | 12-SO | Series | R²Coupler™ |
| Rise / Fall Time (Typ) | 10ns, 10ns | Propagation Delay tpLH / tpHL (Max) | 35ns, 35ns |
| Packaging | Tape & Reel (TR) | Package / Case | 12-BSOP (0.295", 7.50mm Width) |
| Output Type | Push-Pull, Totem Pole | Operating Temperature | -40°C ~ 125°C |
| Number of Channels | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC | Detailed Description | Logic Output Optoisolator Push-Pull, Totem Pole 5000Vrms 2 Channel 15kV/µs CMTI 12-SO |
| Data Rate | - | Current - Output / Channel | 10mA |
| Current - DC Forward (If) (Max) | 20mA | Common Mode Transient Immunity (Min) | 15kV/µs |
