8302401FC

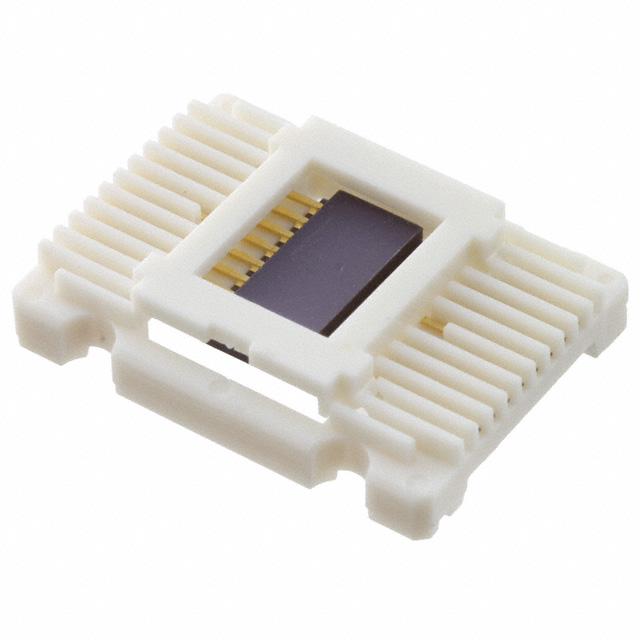

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8302401FC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8302401FC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8302401FC |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | OPTOISO 1.5KV 4CH DARL 16FLATPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 27 pcs | ||||
|---|---|---|---|---|---|
| $42.658 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8302401FC | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISO 1.5KV 4CH DARL 16FLATPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 852 pcs | Data sheet | 6N140A, HCPL-(1,5,6)7xx, 83024, 5962-(89zzz,98002) |
| Category | Isolators | Voltage - Output (Max) | 20V |
| Voltage - Isolation | 1500VDC | Voltage - Forward (Vf) (Typ) | 1.4V |
| Vce Saturation (Max) | 110mV | Turn On / Turn Off Time (Typ) | 2µs, 8µs |
| Supplier Device Package | 16-Flatpack | Series | - |
| Rise / Fall Time (Typ) | - | Packaging | Tube |
| Package / Case | 16-Flatpack | Output Type | Darlington |
| Other Names | 516-2885 8302401FC-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Channels | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Darlington Output 1500VDC 4 Channel 16-Flatpack | Current Transfer Ratio (Min) | 200% @ 5mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | 40mA |
| Current - DC Forward (If) (Max) | 10mA |
