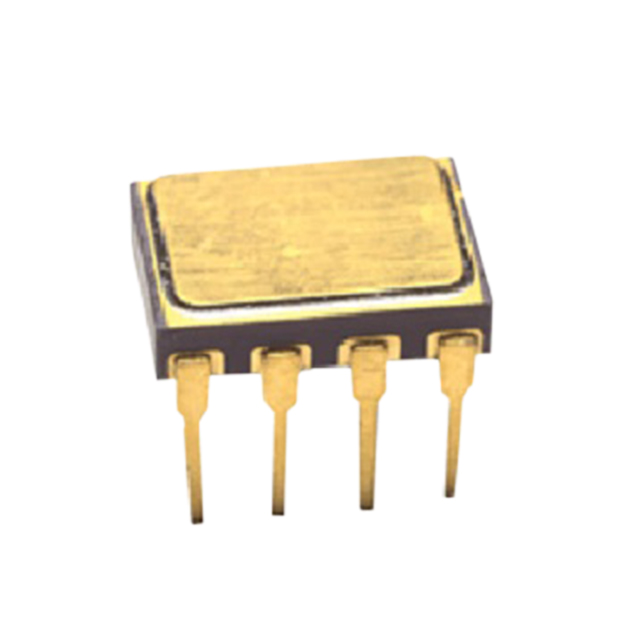

5962-8978503KPC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5962-8978503KPC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5962-8978503KPC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5962-8978503KPC |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | OPTOISO 1.5KV 2CH DARLNG 8-DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 7 pcs | ||||
|---|---|---|---|---|---|
| $182.486 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5962-8978503KPC | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISO 1.5KV 2CH DARLNG 8-DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 179 pcs | Data sheet | 6N140A, HCPL-(1,5,6)7xx, 83024, 5962-(89zzz,98002) |
| Category | Isolators | Voltage - Output (Max) | 20V |
| Voltage - Isolation | 1500VDC | Voltage - Forward (Vf) (Typ) | 1.4V |
| Vce Saturation (Max) | 110mV | Turn On / Turn Off Time (Typ) | 2µs, 8µs |
| Supplier Device Package | 8-DIP | Series | - |
| Rise / Fall Time (Typ) | - | Packaging | Tube |
| Package / Case | 8-DIP (0.300", 7.62mm) | Output Type | Darlington |
| Operating Temperature | -55°C ~ 125°C | Number of Channels | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Darlington Output 1500VDC 2 Channel 8-DIP | Current Transfer Ratio (Min) | 200% @ 5mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | 40mA |
| Current - DC Forward (If) (Max) | 10mA |
