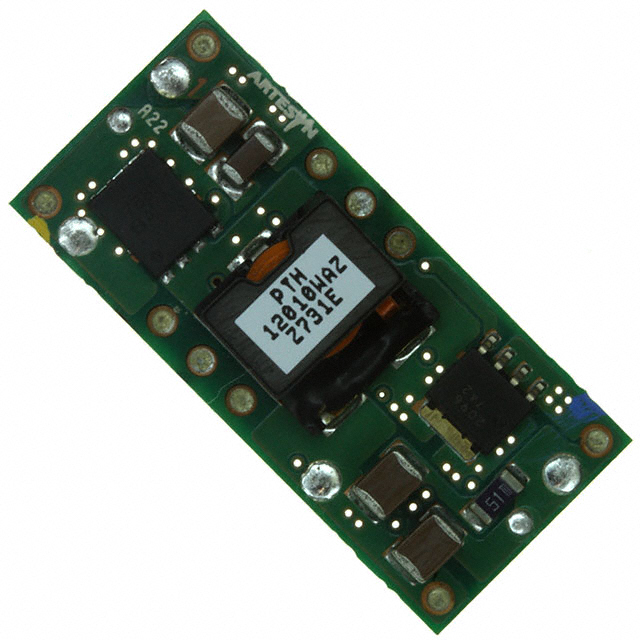

PTH12010WAZ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PTH12010WAZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PTH12010WAZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PTH12010WAZ |
|---|---|
| Manufacturer | Astec America (Artesyn Embedded Technologies) |
| Description | DC DC CONVERTER 1.2-5.5V 66W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 40 pcs | ||||
|---|---|---|---|---|---|
| $6.741 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PTH12010WAZ | Manufacturer | Astec America (Artesyn Embedded Technologies) |
|---|---|---|---|
| Description | DC DC CONVERTER 1.2-5.5V 66W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4874 pcs | Data sheet | PTH12010 Series |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 1.2 ~ 5.5 V |
| Voltage - Input (Min) | 10.8V | Voltage - Input (Max) | 13.2V |
| Type | Non-Isolated PoL Module | Size / Dimension | 1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm) |
| Series | PTH12010 | Power (Watts) | 66W |
| Packaging | Tray | Package / Case | 10-SMD Module |
| Other Names | 393-1178 | Operating Temperature | -40°C ~ 85°C |
| Number of Outputs | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Remote On/Off, SCP, UVLO | Efficiency | 94% |
| Detailed Description | Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 5.5 V 12A 10.8V - 13.2V Input | Current - Output (Max) | 12A |
| Applications | ITE (Commercial) |
