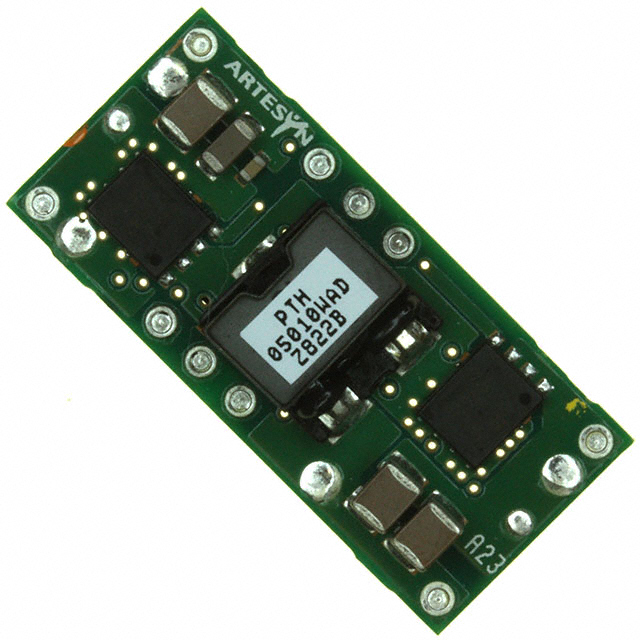

PTH05010WAD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PTH05010WAD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PTH05010WAD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PTH05010WAD |
|---|---|
| Manufacturer | Astec America (Artesyn Embedded Technologies) |
| Description | DC DC CONVERTER 0.8-3.6V 54W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 40 pcs | |
|---|---|---|---|---|---|
| $7.238 | $7.182 | $7.127 | $7.015 | ||
| 80 pcs | 120 pcs | 280 pcs | 520 pcs | ||
| $6.681 | $6.124 | $6.013 | $5.924 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PTH05010WAD | Manufacturer | Astec America (Artesyn Embedded Technologies) |
|---|---|---|---|
| Description | DC DC CONVERTER 0.8-3.6V 54W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5833 pcs | Data sheet | PTH05010 Series |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 0.8 ~ 3.6 V |
| Voltage - Input (Min) | 4.5V | Voltage - Input (Max) | 5.5V |
| Type | Non-Isolated PoL Module | Size / Dimension | 1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm) |
| Series | PTH05010W | Power (Watts) | 54W |
| Packaging | Tray | Package / Case | 10-DIP Module |
| Other Names | 393-1167 | Operating Temperature | -40°C ~ 85°C |
| Number of Outputs | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Remote On/Off, OTP, SCP, UVLO |
| Efficiency | 95% | Detailed Description | Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6 V 15A 4.5V - 5.5V Input |
| Current - Output (Max) | 15A | Applications | ITE (Commercial) |
