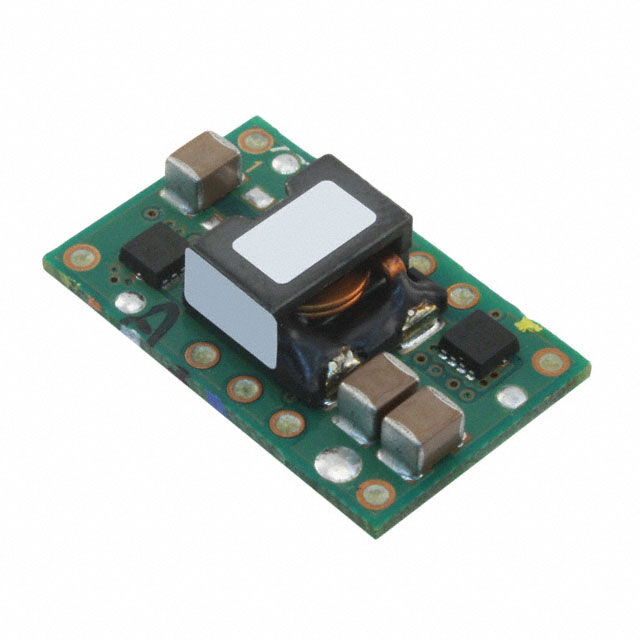

PTH03060WAZ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PTH03060WAZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PTH03060WAZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PTH03060WAZ |
|---|---|
| Manufacturer | Astec America (Artesyn Embedded Technologies) |
| Description | DC DC CONVERTER 0.8-2.5V 25W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 48 pcs | ||||
|---|---|---|---|---|---|
| $5.872 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PTH03060WAZ | Manufacturer | Astec America (Artesyn Embedded Technologies) |
|---|---|---|---|
| Description | DC DC CONVERTER 0.8-2.5V 25W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5638 pcs | Data sheet | PTH03060 Series |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 0.8 ~ 2.5 V |
| Voltage - Input (Min) | 2.95V | Voltage - Input (Max) | 3.65V |
| Type | Non-Isolated PoL Module | Size / Dimension | 1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm) |
| Series | PTH03060W | Power (Watts) | 25W |
| Packaging | Tray | Package / Case | 10-SMD Module |
| Other Names | 393-1157 | Operating Temperature | -40°C ~ 85°C |
| Number of Outputs | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Remote On/Off, SCP, UVLO | Efficiency | 93% |
| Detailed Description | Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.5 V 10A 2.95V - 3.65V Input | Current - Output (Max) | 10A |
| Applications | ITE (Commercial) |
