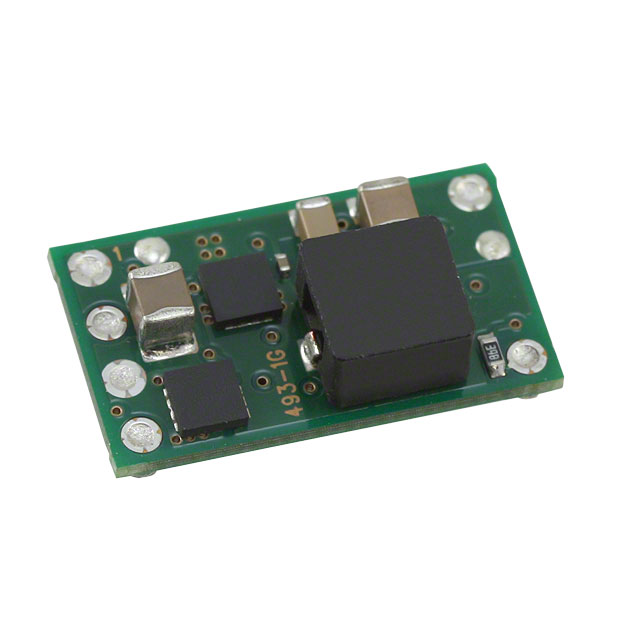

PTH03050WAZ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PTH03050WAZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PTH03050WAZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PTH03050WAZ |
|---|---|
| Manufacturer | Astec America (Artesyn Embedded Technologies) |
| Description | DC DC CONVERTER 0.8-2.5V 15W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | ||
|---|---|---|---|---|---|
| $4.281 | $4.25 | $4.218 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PTH03050WAZ | Manufacturer | Astec America (Artesyn Embedded Technologies) |
|---|---|---|---|
| Description | DC DC CONVERTER 0.8-2.5V 15W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8729 pcs | Data sheet | PTH03050 Series |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 0.8 ~ 2.5 V |
| Voltage - Input (Min) | 2.95V | Voltage - Input (Max) | 3.65V |
| Type | Non-Isolated PoL Module | Size / Dimension | 0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm) |
| Series | PTH03050W | Power (Watts) | 15W |
| Packaging | Tray | Package / Case | 6-SMD Module |
| Other Names | 393-1155 | Operating Temperature | -40°C ~ 85°C |
| Number of Outputs | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Remote On/Off, OCP, OTP, UVLO | Efficiency | 94% |
| Detailed Description | Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.5 V 6A 2.95V - 3.65V Input | Current - Output (Max) | 6A |
| Applications | ITE (Commercial) |
