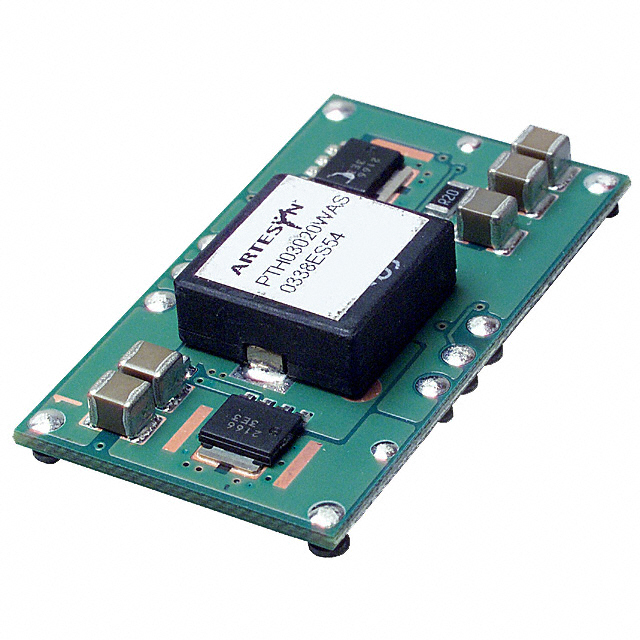

PTH03020WAS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PTH03020WAS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PTH03020WAS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PTH03020WAS |
|---|---|
| Manufacturer | Astec America (Artesyn Embedded Technologies) |
| Description | DC DC CONVERTER 0.8-2.5V 55W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PTH03020WAS | Manufacturer | Astec America (Artesyn Embedded Technologies) |
|---|---|---|---|
| Description | DC DC CONVERTER 0.8-2.5V 55W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4709 pcs | Data sheet | PTH03020 Series |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 0.8 ~ 2.5 V |
| Voltage - Input (Min) | 2.95V | Voltage - Input (Max) | 3.65V |
| Type | Non-Isolated PoL Module | Size / Dimension | 1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.6mm) |
| Series | PTH03020W | Power (Watts) | 55W |
| Packaging | Tray | Package / Case | 10-SMD Module |
| Other Names | 393-1064 393-1064-ND 393-1097 |
Operating Temperature | -40°C ~ 85°C |
| Number of Outputs | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Remote On/Off, OTP, SCP, UVLO | Efficiency | 93% |
| Detailed Description | Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.5 V 22A 2.95V - 3.65V Input | Current - Output (Max) | 22A |
| Applications | ITE (Commercial) |
