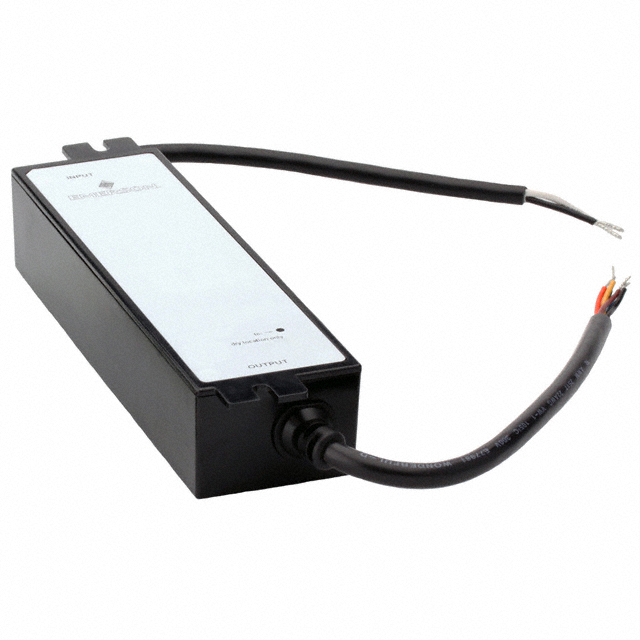

LDS25-36-H03U
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LDS25-36-H03U with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LDS25-36-H03U with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LDS25-36-H03U |
|---|---|
| Manufacturer | Astec America (Artesyn Embedded Technologies) |
| Description | LED DVR CC/CV AC/DC 26-36V .7A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LDS25-36-H03U | Manufacturer | Astec America (Artesyn Embedded Technologies) |
|---|---|---|---|
| Description | LED DVR CC/CV AC/DC 26-36V .7A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6014 pcs | Data sheet | LDS25 Series |
| Category | Power Supplies - External/Internal (Off-Board) | Weight | 0.662 lb (300.28g) |
| Voltage - Output | 26 ~ 36 V | Voltage - Input (Min) | 120VAC |
| Voltage - Input (Max) | 277VAC | Type | Constant Current, Voltage |
| Topology | AC DC Converter | Termination Style | Wire Leads |
| Size / Dimension | 9.67" L x 1.65" W x 1.05" H (245.5mm x 42.0mm x 26.7mm) | Series | LDS25 |
| Ratings | IP20 | Power (Watts) | 25W |
| Other Names | 454-1512 | Operating Temperature | -40°C ~ 80°C |
| Number of Outputs | 1 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | OTP, OVP, SCP | Efficiency | 86% |
| Dimming | Analog | Detailed Description | 700mA 26 ~ 36 V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output |
| Current - Output (Max) | 700mA | Approvals | CE, CSA, EN, UL |
