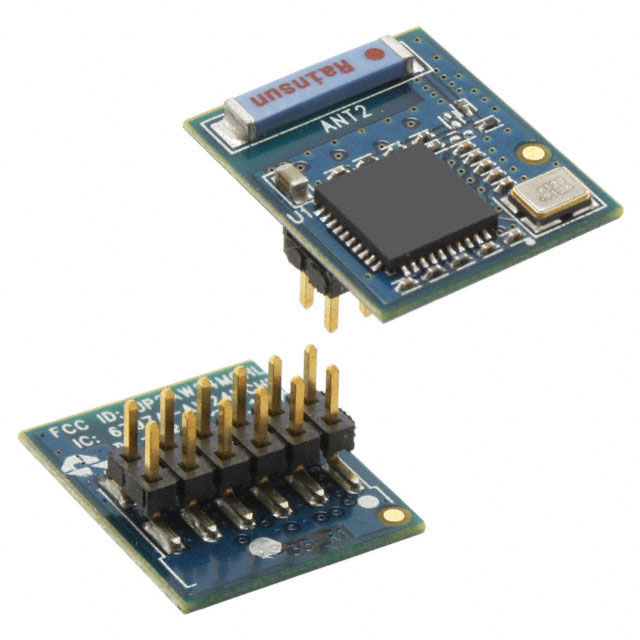

AW24MCHL-H2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AW24MCHL-H2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AW24MCHL-H2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AW24MCHL-H2 |
|---|---|
| Manufacturer | Artaflex Inc. |
| Description | RF TXRX MODULE ISM>1GHZ CHIP ANT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $6.507 | $5.888 | $5.423 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.958 | $4.648 | $4.338 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AW24MCHL-H2 | Manufacturer | Artaflex Inc. |
|---|---|---|---|
| Description | RF TXRX MODULE ISM>1GHZ CHIP ANT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7540 pcs | Data sheet | Hardware Design GuideAW24MxxL |
| Category | RF/IF and RFID | Voltage - Supply | 2.4 V ~ 3.6 V |
| Utilized IC / Part | CYRF7936 | Series | - |
| Serial Interfaces | SPI | Sensitivity | -97dBm |
| RF Family/Standard | General ISM > 1GHZ | Protocol | - |
| Power - Output | 4dBm | Packaging | Bulk |
| Package / Case | Module | Other Names | 748-1004 AFI-AW24MCHL-H2-01 AW24MCHL AW24MCHLH2 |
| Operating Temperature | -20°C ~ 70°C | Mounting Type | Surface Mount |
| Modulation | DSSS, GFSK | Memory Size | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency | 2.4GHz |
| Data Rate | 1Mbps | Current - Transmitting | 20.8mA ~ 34.1mA |
| Current - Receiving | 18.4mA ~ 21.2mA | Antenna Type | Integrated, Chip |
