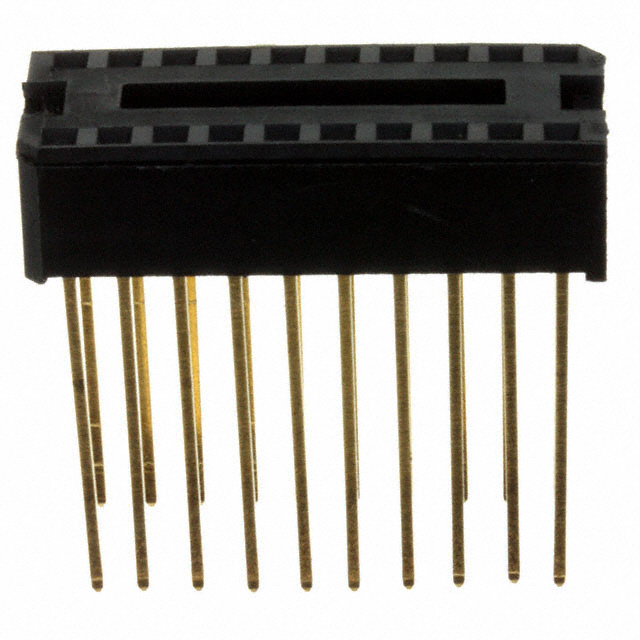

C9120-00
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy C9120-00 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy C9120-00 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | C9120-00 |
|---|---|
| Manufacturer | Aries Electronics, Inc. |
| Description | CONN IC DIP SOCKET 20POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 24 pcs | ||||
|---|---|---|---|---|---|
| $1.867 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | C9120-00 | Manufacturer | Aries Electronics, Inc. |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 20POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16726 pcs | Data sheet | C81, C91 Series |
| Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | 0.675" (17.15mm) | Termination | Wire Wrap |
| Series | Edge-Grip™, C91 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | C91-20-00 C9120 |
Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 20 (2 x 10) | Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Features | Closed Frame |
| Current Rating | 1.5A | Contact Resistance | - |
| Contact Material - Post | Phosphor Bronze | Contact Material - Mating | Phosphor Bronze |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
