22-4518-11

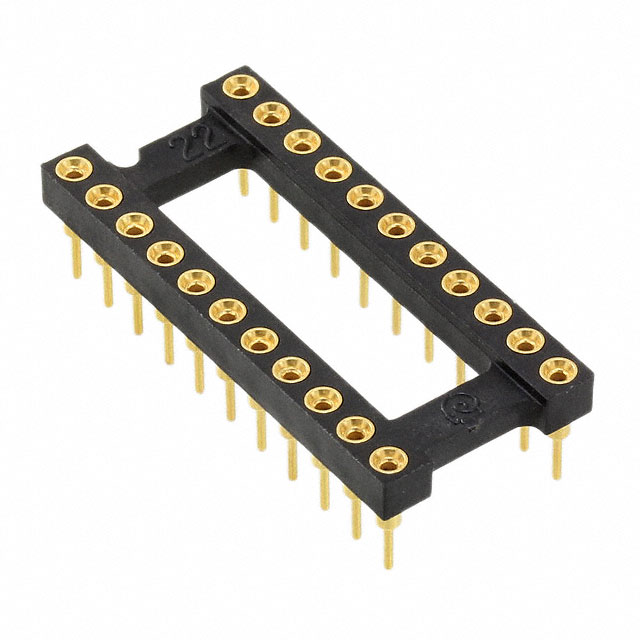

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 22-4518-11 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 22-4518-11 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 22-4518-11 |
|---|---|
| Manufacturer | Aries Electronics, Inc. |
| Description | CONN IC DIP SOCKET 22POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.617 | $1.255 | $1.004 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.837 | $0.742 | $0.697 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 22-4518-11 | Manufacturer | Aries Electronics, Inc. |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 22POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48680 pcs | Data sheet | 518 Series Open Frame Socket |
| Category | Connectors, Interconnects | Type | DIP, 0.4" (10.16mm) Row Spacing |
| Termination Post Length | 0.125" (3.18mm) | Termination | Solder |
| Series | 518 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 22-4518-11-ND A844AR |
Operating Temperature | - |
| Number of Positions or Pins (Grid) | 22 (2 x 11) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Features | Open Frame |
| Current Rating | 3A | Contact Resistance | - |
| Contact Material - Post | Brass | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
