209-PGM17020-10

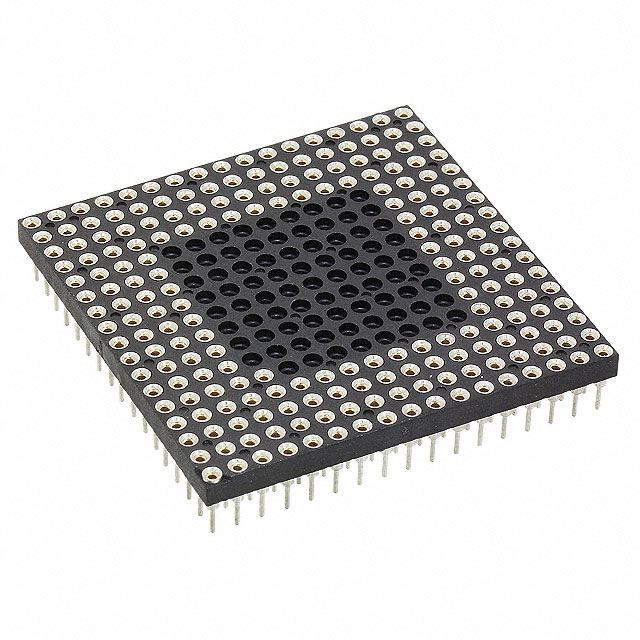

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 209-PGM17020-10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 209-PGM17020-10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 209-PGM17020-10 |
|---|---|
| Manufacturer | Aries Electronics, Inc. |
| Description | CONN SOCKET PGA GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $5.397 | $4.937 | $4.445 | $4.048 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 209-PGM17020-10 | Manufacturer | Aries Electronics, Inc. |
|---|---|---|---|
| Description | CONN SOCKET PGA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8244 pcs | Data sheet | Pin Grid Array Socket/Header |
| Category | Connectors, Interconnects | Type | PGA |
| Termination Post Length | 0.165" (4.19mm) | Termination | Solder |
| Series | PGM | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 209-PGM17020-10-ND A842AR Q3845529 |
Operating Temperature | -55°C ~ 105°C |
| Number of Positions or Pins (Grid) | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Features | - |
| Current Rating | 3A | Contact Resistance | - |
| Contact Material - Post | Brass | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
