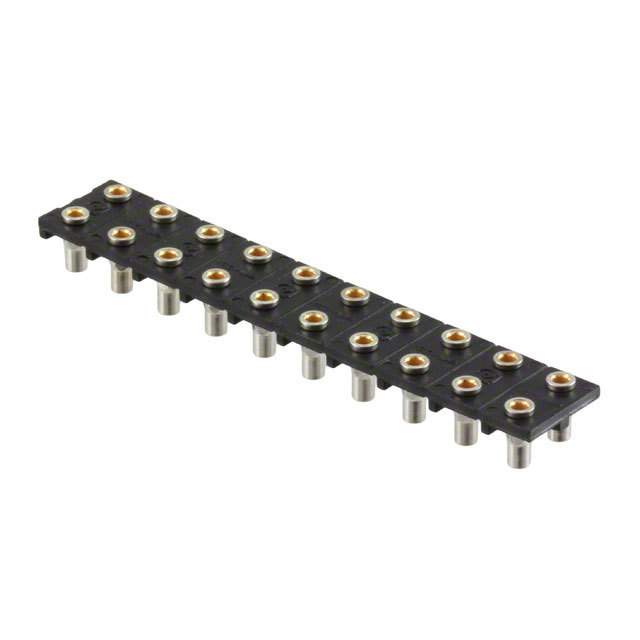

20-F40-10
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 20-F40-10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 20-F40-10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 20-F40-10 |
|---|---|
| Manufacturer | Aries Electronics, Inc. |
| Description | DIP STRIP FEMALE 20 POSITION |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 30 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $5.03 | $4.401 | $3.898 | $3.27 | $3.144 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 20-F40-10 | Manufacturer | Aries Electronics, Inc. |
|---|---|---|---|
| Description | DIP STRIP FEMALE 20 POSITION | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11305 pcs | Data sheet | F40 Series |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | - |
| Series | F40 | Row Spacing - Mating | 0.200" (5.08mm) |
| Pitch - Mating | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 20-F40-10-ND A843AR Q857850 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.040" (1.02mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | - | Detailed Description | 20 Position Receptacle, Breakaway Connector 0.200" (5.08mm) Through Hole Tin |
| Current Rating | 8A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Brass Alloy |
| Contact Length - Post | 0.129" (3.28mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle, Breakaway |
| Applications | - |
