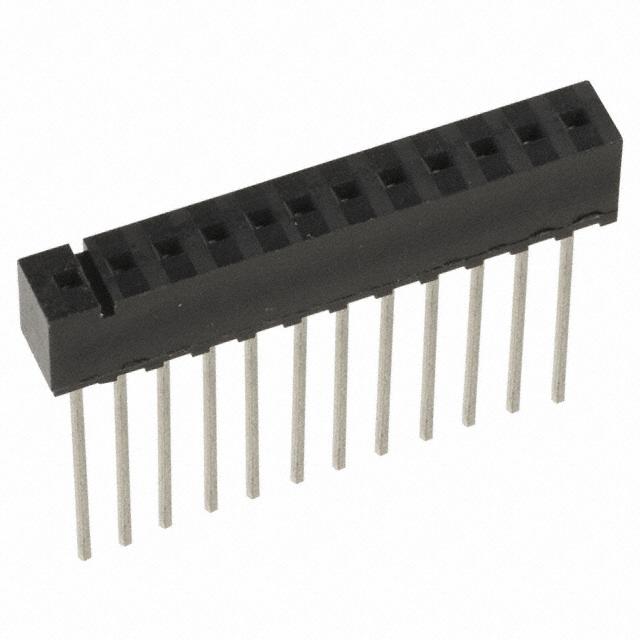

12-0501-30
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 12-0501-30 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 12-0501-30 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 12-0501-30 |
|---|---|
| Manufacturer | Aries Electronics, Inc. |
| Description | CONN SOCKET SIP 12POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 20 pcs | ||||
|---|---|---|---|---|---|
| $2.176 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 12-0501-30 | Manufacturer | Aries Electronics, Inc. |
|---|---|---|---|
| Description | CONN SOCKET SIP 12POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14529 pcs | Data sheet | 501 Series, Strip-Line |
| Category | Connectors, Interconnects | Type | SIP |
| Termination Post Length | 0.690" (17.52mm) | Termination | Wire Wrap |
| Series | 501 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 12050130 A204 |
Operating Temperature | -55°C ~ 105°C |
| Number of Positions or Pins (Grid) | 12 (1 x 12) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Features | - |
| Current Rating | 1A | Contact Resistance | - |
| Contact Material - Post | Phosphor Bronze | Contact Material - Mating | Phosphor Bronze |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
