1109523

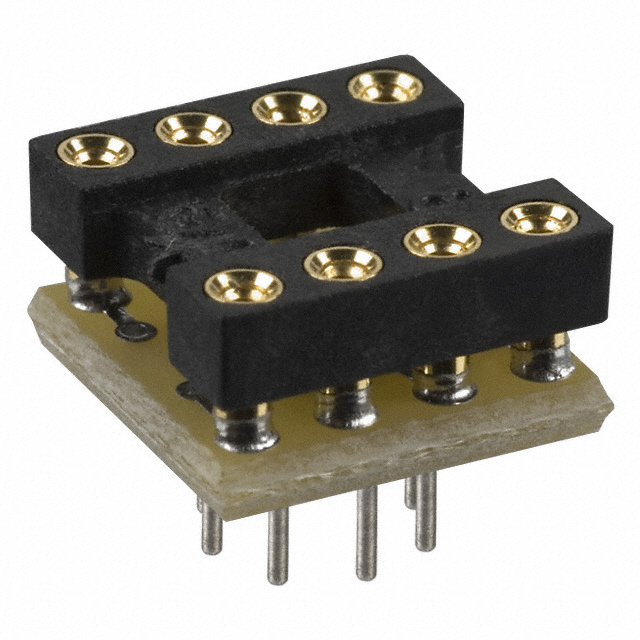

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1109523 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1109523 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1109523 |
|---|---|
| Manufacturer | Aries Electronics, Inc. |
| Description | SOCKET ADAPTER DIP TO TO-8 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.778 | $3.286 | $2.629 | $2.218 | $2.095 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1109523 | Manufacturer | Aries Electronics, Inc. |
|---|---|---|---|
| Description | SOCKET ADAPTER DIP TO TO-8 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 17510 pcs | Data sheet | 1109522,1109523 |
| Category | Connectors, Interconnects | Termination Post Length | 0.125" (3.18mm) |
| Termination | Solder | Series | Correct-A-Chip® 1109523 |
| Pitch - Post | - | Pitch - Mating | 0.100" (2.54mm) |
| Other Names | A330 | Operating Temperature | - |
| Number of Pins | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Features | Socket Included |
| Detailed Description | IC Socket Adapter DIP, 0.3" (7.62mm) Row Spacing To JEDEC Through Hole | Current Rating | 1A |
| Convert To (Adapter End) | JEDEC | Convert From (Adapter End) | DIP, 0.3" (7.62mm) Row Spacing |
| Contact Material - Post | Brass | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Board Material | FR4 Epoxy Glass |
