10-2820-90C

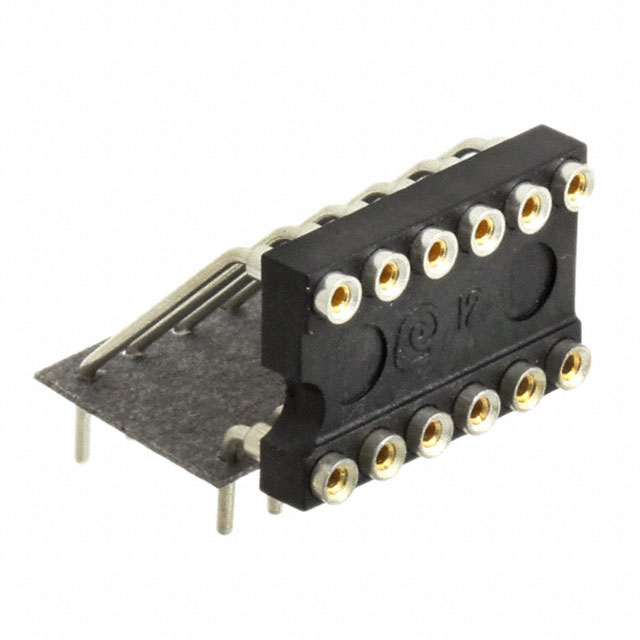

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10-2820-90C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10-2820-90C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10-2820-90C |
|---|---|
| Manufacturer | Aries Electronics, Inc. |
| Description | CONN IC DIP SOCKET 10POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.732 | $2.206 | $1.786 | $1.471 | $1.366 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 10-2820-90C | Manufacturer | Aries Electronics, Inc. |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 10POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26419 pcs | Data sheet | 800 Series, Collet Horizontal |
| Category | Connectors, Interconnects | Type | DIP, 0.2" (5.08mm) Row Spacing |
| Termination Post Length | 0.140" (3.56mm) | Termination | Solder |
| Series | Vertisockets™ 800 | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 10-2820-90C-ND A789AR |
Operating Temperature | -55°C ~ 105°C |
| Number of Positions or Pins (Grid) | 10 (2 x 5) | Mounting Type | Through Hole, Right Angle, Horizontal |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Features | Closed Frame |
| Current Rating | 3A | Contact Resistance | - |
| Contact Material - Post | Brass | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
