Home > Products > Integrated Circuits (ICs) > PMIC - Full, Half-Bridge Drivers > SA53-IHZ

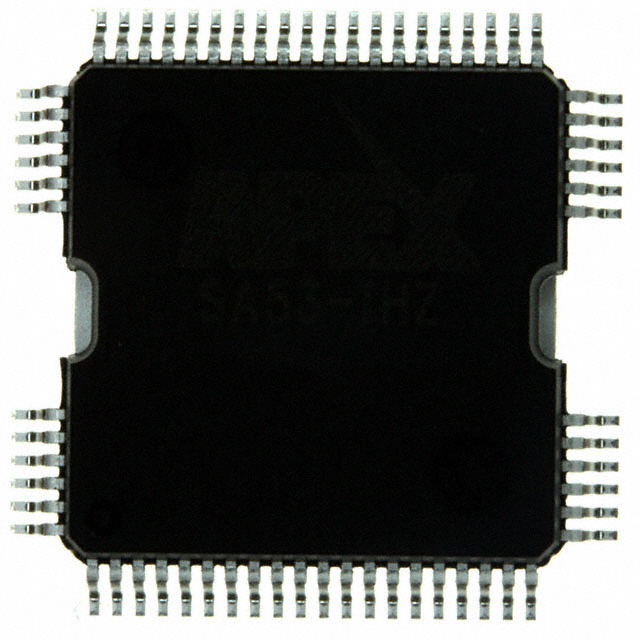

SA53-IHZ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SA53-IHZ with confidence from Components-World.HK, 1 Year Warranty

Dowload SA53-IHZ Details in PDF

Request a Quote

Part Number	SA53-IHZ
Manufacturer	Apex Microtechnology
Description	IC MOTOR DRIVER PAR 64QFP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5485 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	SA53-IHZ	Manufacturer	Apex Microtechnology
Description	IC MOTOR DRIVER PAR 64QFP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5485 pcs	Data sheet	SA53
Category	Integrated Circuits (ICs)	Voltage - Supply	4.5 V ~ 5.5 V
Voltage - Load	8.3 V ~ 60 V	Technology	DMOS
Supplier Device Package	64-PowerQFP	Series	Apex Precision Power®
Rds On (Typ)	400 mOhm	Packaging	Tray
Package / Case	64-PowerQFP	Output Configuration	Half Bridge (2)
Other Names	598-1785	Operating Temperature	-25°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Load Type	Inductive	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	PWM	Features	-
Fault Protection	Current Limiting, Over Temperature, Shoot-Through, UVLO	Detailed Description	Half Bridge (2) Driver DC Motors, General Purpose, Solenoids, Stepper Motors DMOS 64-PowerQFP
Current - Peak Output	10A	Current - Output / Channel	3A
Base Part Number	SA*	Applications	DC Motors, General Purpose, Solenoids, Stepper Motors
