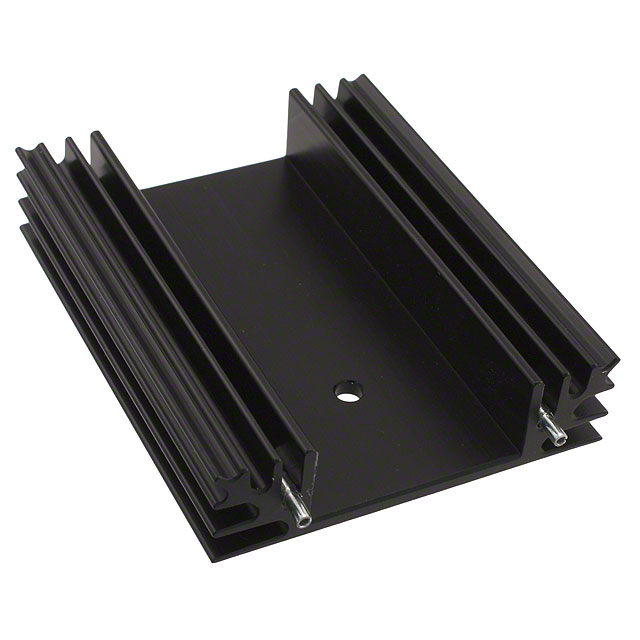

HS27
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HS27 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HS27 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HS27 |
|---|---|
| Manufacturer | Apex Microtechnology |
| Description | HEATSINK 12P PWR SIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $12.719 | $11.972 | $11.224 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $10.476 | $10.102 | $9.54 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HS27 | Manufacturer | Apex Microtechnology |
|---|---|---|---|
| Description | HEATSINK 12P PWR SIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3945 pcs | Data sheet | HS27 Drawing |
| Category | Fans, Thermal Management | Type | Board Level |
| Thermal Resistance @ Natural | - | Thermal Resistance @ Forced Air Flow | - |
| Size, Supplied | - | Shielding | 3.000" (76.20mm) |
| Shape | Rectangular, Fins | Series | Apex Precision Power® |
| Product Type | Black Anodized | Power Dissipation @ Temperature Rise | 0.630" (16.00mm) |
| Other Names | 598-1475 598-2072 598-2072-ND HS27-ND |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Thickness | 2.360" (59.94mm) | Material Finish | 5.3°C/W |
| Material | Aluminum | Manufacturer Standard Lead Time | 10 Weeks |
| Manufacturer Part Number | HS27 | Height Off Base (Height of Fin) | Bolt On and PC Pin |
| Expanded Description | Heat Sink PSIP Aluminum Board Level | Description | HEATSINK 12P PWR SIP |
| Attachment Method | PSIP |
