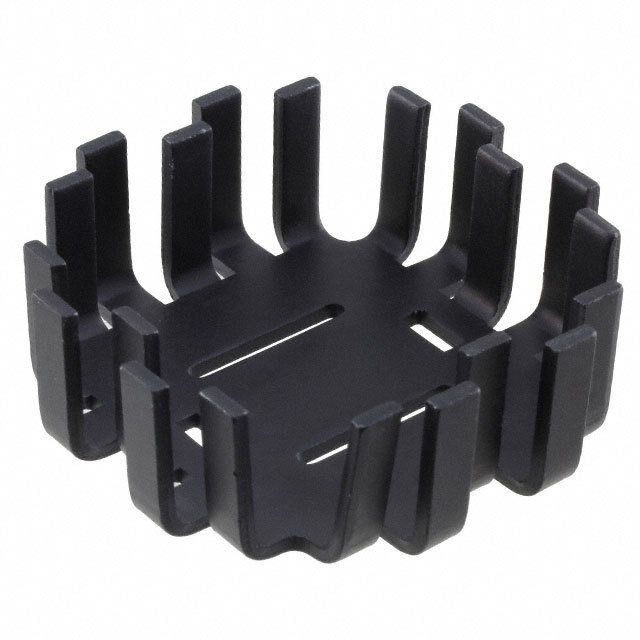

HS21
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HS21 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HS21 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HS21 |
|---|---|
| Manufacturer | Apex Microtechnology |
| Description | HEATSINK 6P DIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.944 | $2.865 | $2.706 | $2.546 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.387 | $2.228 | $2.069 | $2.029 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HS21 | Manufacturer | Apex Microtechnology |
|---|---|---|---|
| Description | HEATSINK 6P DIP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 18121 pcs | Data sheet | HS21 Drawing |
| Category | Fans, Thermal Management | Width | 2.500" (63.50mm) |
| Type | Board Level | Thermal Resistance @ Natural | 5.60°C/W |
| Thermal Resistance @ Forced Air Flow | 30.00°C/W @ 500 LFM | Shape | Square, Pin Fins |
| Series | Apex Precision Power® | Power Dissipation @ Temperature Rise | 3.0W @ 20°C |
| Package Cooled | 6-DIP | Other Names | 1240-1023 HS21-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 2.500" (63.50mm) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Height Off Base (Height of Fin) | 0.900" (22.86mm) | Diameter | - |
| Detailed Description | Heat Sink 6-DIP Aluminum 3.0W @ 20°C Board Level | Attachment Method | Bolt On |
