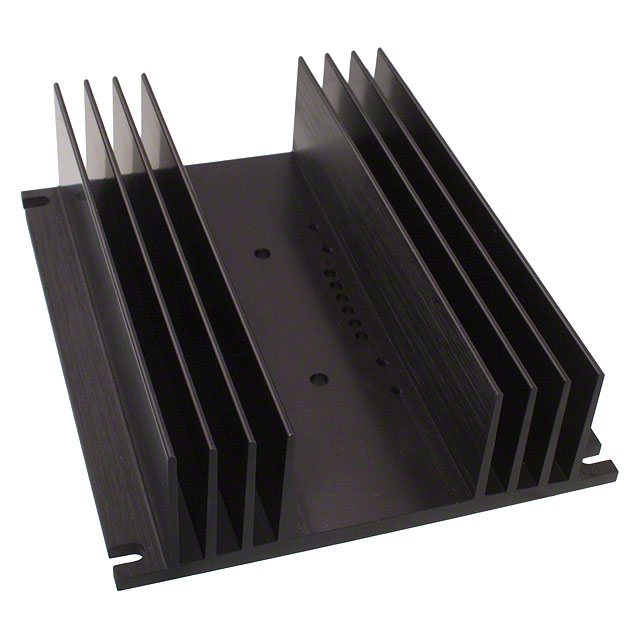

HS18
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HS18 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HS18 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HS18 |
|---|---|
| Manufacturer | Apex Microtechnology |
| Description | HEATSINK 12P DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $42.947 | $40.262 | $37.577 | $36.235 | $34.893 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | HS18 | Manufacturer | Apex Microtechnology |
|---|---|---|---|
| Description | HEATSINK 12P DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 855 pcs | Data sheet | HS18 Drawing |
| Category | Fans, Thermal Management | Width | 4.612" (117.14mm) |
| Type | Board Level, Extrusion | Thermal Resistance @ Natural | 1.00°C/W |
| Thermal Resistance @ Forced Air Flow | - | Shape | Rectangular, Fins |
| Series | Apex Precision Power® | Power Dissipation @ Temperature Rise | - |
| Package Cooled | PDIP | Other Names | 598-1474 598-2064 598-2064-ND HS18-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 5.421" (139.70mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 1.500" (38.10mm) | Diameter | - |
| Detailed Description | Heat Sink PDIP Aluminum Board Level, Extrusion | Attachment Method | Bolt On |
